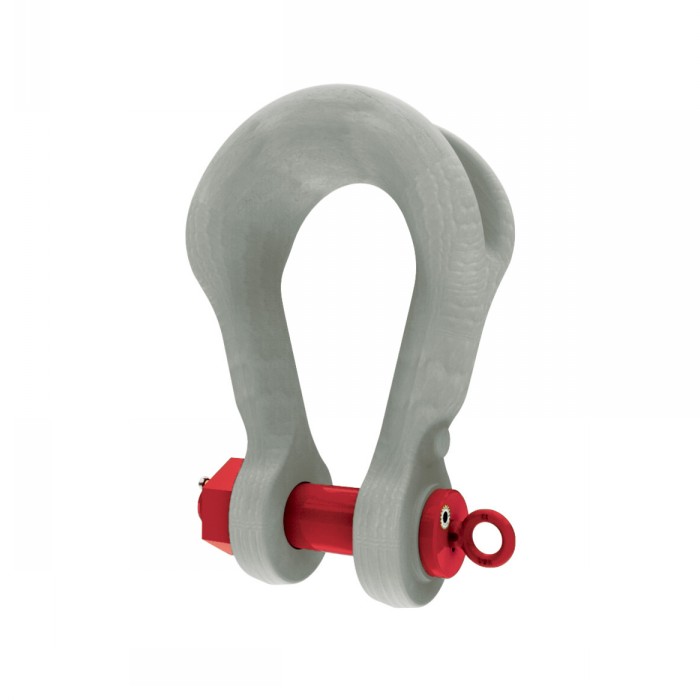

WIDE BODY SHACKLE CROSBY G-2160 A wide body shackle is a type of shackle that has a wide body. This allows for more contact area with the load, which results in better distribution of forces and improved safety. Additionally, they are less likely to become damaged or deformed under heavy loads. DIMENSIONS WLL A(inch) B(inch) C(inch) D(inch) E(inch) F(inch) G(inch) L(inch) R(inch) X(inch) Y Weight ton lbs 30 1 3/8 1 3/4 2 9/16 7 3/32 3 9/16 5 1/32 3 5/32 7 15/16 1 25/32 8 1/32 11 1/2 31 40 1 25/32 2 3 5/16 7 7/8 4 9/32 5 1/2 3 13/16 9 15/16 2 3/32 9 1/8 13 1/32 46 55 2 9/16 2 3/16 3 3/4 9 27/32 5 1/8 6 5/16 4 5/16 11 13/16 2 5/32 11 11/32 15 3/4 73 75 2 15/16 2 3/4 4 5/16 11 13/16 5 29/32 7 9/32 4 23/32 13 19/32 2 3/8 13 5/32 19 3/32 117 125 3 11/32 3 5/32 5 1/2 14 9/16 6 1/2 8 21/32 5 29/32 15 9/16 3 5/32 15 11/32 22 15/16 185 150 3 9/16 3 3/4 5 29/32 15 3/4 7 7/8 9 27/32 6 11/16 16 17/32 3 9/16 16 7/8 25 1/8 254 200 4 1/8 4 1/8 6 5/16 18 29/32 8 7/8 10 13/16 8 1/16 18 1/2 4 5/16 19 1/16 29 23/32 403 250 4 23/32 4 23/32 7 3/32 21 21/32 9 7/16 11 13/16 9 1/16 20 15/32 4 15/16 21 1/4 33 15/32 562 300 5 1/2 5 9/32 7 11/16 23 5/8 11 1/32 13 25/32 10 7/16 22 27/32 5 1/2 24 23/32 37 9/32 811 400 6 5/16 6 5/16 9 1/16 24 13/32 13 14 9/16 12 19/32 25 25/32 6 11/16 27 1/8 40 3/4 1259 500 6 11/16 7 7/16 10 7/16 26 25/32 13 25/32 17 5/16 13 3/8 27 15/16 7 3/32 30 11/16 44 9/32 1585 NOTE: When using a wide body shackle, always inspect it before each use for signs of wear, deformation, or damage. Ensure that the load is within the shackle’s rated capacity, and follow proper rigging procedures to ensure safety. WIDE BODY SHACKLE-CHINA KAILIPU SOME KEY FEATURES OF WIDE BODY SHACKLE 1. Shape and Design: Wide body shackles have a broader body compared to regular shackles. The wider design provides more surface area and can distribute the load more evenly. Meanwhile it can also reduce stress concentrations on the attachment points. 2. Load Capacity: Wide body shackles are available in various load capacities, ranging from light-duty to heavy-duty. It’s important to choose a shackle with a load rating that matches the intended application to ensure safety and reliability. 3. Material: Wide body shackles are typically made of high-strength materials, such as alloy steel or stainless steel, to provide excellent durability and resistance to corrosion or wear. 4. Versatility: Wide body shackles can be use in a range of applications, including rigging, lifting, towing, and anchoring. They are commonly uses in industries such as construction, maritime, off-roading, and general outdoor activities. WIDE BODY SHACKLE-CHINA MANUFACTURER China Supplier of Rigging Hardware-Shackles Shackles are one of the common rigging hardware. Kailipu supplies hundreds of high tensile lifting and rigging shackles in China. Among them, the G209, G210, G2130, G2150, European Large D, BK wide body shackles are the most representative. Meanwhile, our specifications range from 0.33 tons to 500 tons, which covers almost all sizes you will need. If you are looking for professional rigging hardware and shackles suppliers, do not hesitate to contact us at [email protected].
