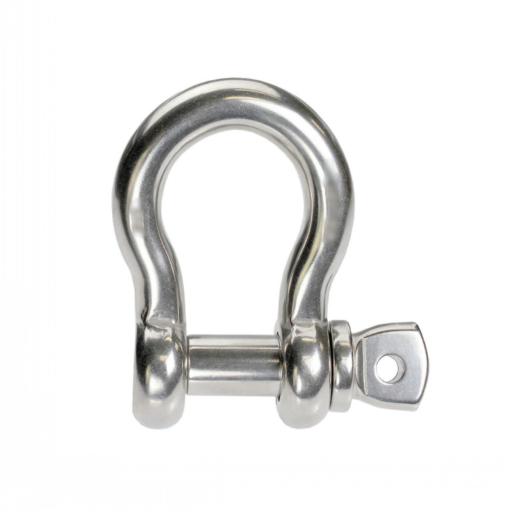

A screw pin bow shackle is a type of shackle that features a removable pin or bolt that can be screwed in and out of the shackle body. This design allows for easy attachment and detachment of the shackle from lifting or rigging equipment. DIMENSIONS OF SCREW PIN BOW SHACKLE: D(mm) d(mm) a(mm) c(mm) r(mm) b(mm) S.W.L. Weight per 100 pcs Kg Kg 5 5 10 19 8 11 80 2.2 6 6 13 25 10 14 100 4 8 8 16 32 12 18 200 8 10 10 19 38 16 20 320 15 11 11 22 44 18 23 400 20 12 12 25 51 19 26 520 30 16 16 32 64 28 33 800 58 20 20 38 76 33 40 1100 92 22 22 44 89 37 50 1500 149 25 25 51 100 40 57 2100 230 28 28 57 115 47 68 3000 357 32 32 64 127 52 73 3500 495 38 38 76 152 63 85 5000 805 45 45 90 180 75 96 7000 1,438 50 50 102 200 78 108 8000 2,012 NOTE: When using a screw pin bow shackle, it’s important to ensure that it is properly rated for the intended load and that it is securely closed and tightened. Proper inspection and maintenance of shackles are crucial to ensure their safe and effective use.
