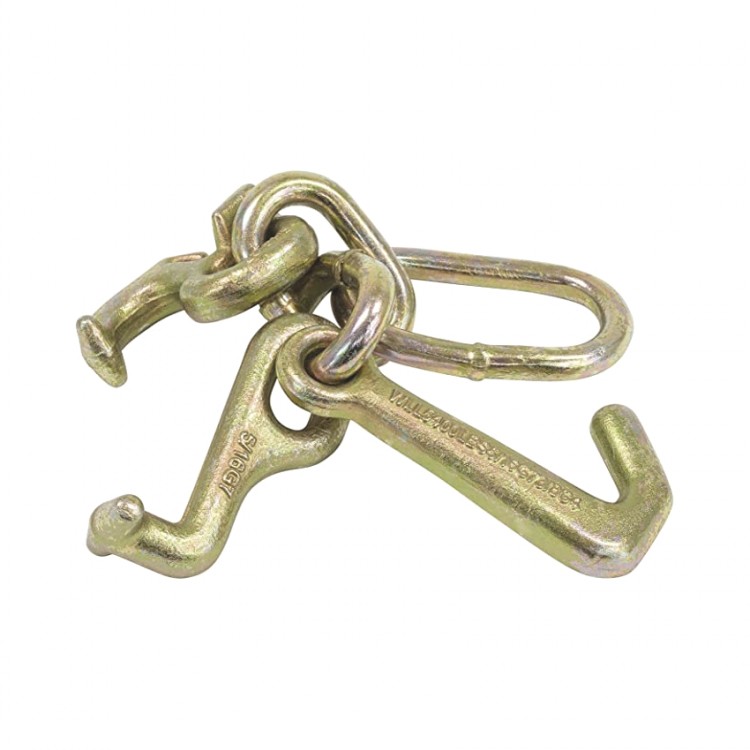

RTJ Cluster Hook RTJ cluster hook refers to a type of hook used in towing and recovery operations, especially in the context of attaching multiple chains or straps to a single anchor point.The RTJ Cluster hook is a specific hook for car tie down securement. These hooks are for frame rails and unibodies. The R hook is for Ford, T hook for GM and Chysler, and the J hook is for foreign cars. Specifications： Weight(Kg) : 1.03 R Hook Size Dimensions(mm) WLL(LBS) MBS(T) Weight Inch MM A B L M Carbon Alloy Carbon Alloy KG 5/16” 8 14.4 26.0 85.2 66.9 2900 4700 5.3 8.5 0.30 T Hook Size Dimensions(mm) WLL(LBS) MBS(T) Weight Inch MM A B L Carbon Alloy Carbon Alloy KG 5/16” 8 29.0 14.5 101.0 4150 4700 7.5 8.5 0.26 Mini J Hook Size Dimensions(mm) WLL MBS Weight Inch MM L B (LBS) (LBS) KG 5/16”-3/8” 7-8 14.5 29.0 5400 19000 0.32 Enlarged Link Dimensions(mm) Inner Length Inner Width Wire Dia 74.0 32.0 11.0 Use one or two large links to connect three hooks together. Do not exceed the working load limit. Not to be used for overhead lifting. Make Sure the Hook Size and Chain Diameter are Compatible before Attaching to Load. Use with chain for towing, pulling and dragging Designed for grade 70 chain or lower grade chain RTJ Cluster Hook has 3 hooks (RTJ) and large links attached together. Each towing hook has its own application. Link at top is with a diameter of 3/8″ or 11mm. And the extra enlarged Link provides a convenient connection point. Looking for RTJ Cluster Hooks Maufacturer in china? We are always there for you! For any more help, e-mail our specialists at [email protected] for assistance. You May Also Like: R Hook Grade 70 Forged Steel 5/16”/8mm, WLL 4700LBS.
