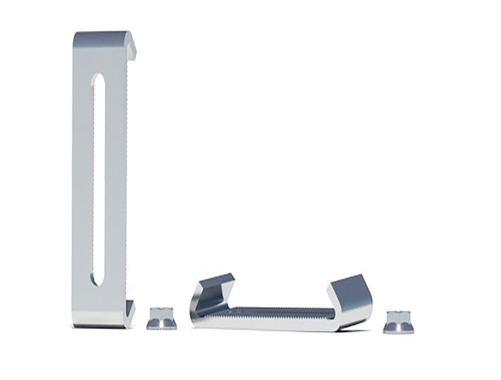

IronRidge BX System Bottom Clamp w/ Hardware, BX-BCL-M1, Qty 1The IronRidge BX System– Bottom Clamp can– accommodate any of the Top Clamp– sizes: 30mm, 32mm, 35mm, 38mm, 40mm, 46mm. When securing modules, place all Bottom Clamps on the Chassis followed by– the PV panels. Place a matching number of Top Clamps aligned above the Bottom Clamps and make sure that all Clamps are fully engaged and square to the module and torqued appropriately.Features: BX has an 8-10% increase in power density when compared with leading competitor systems Provides an anchoring method with a variety of roofing membranes, making– it possible to eliminate ballast weight, meet seismic requirements, or build hybrid systems designed to offer protection for PV conductors and leads running row-to-row in the N-S direction Fewer than 10 parts per project, with no wind deflectors required Free online Design Assistant– provides a bill of materials, ballast map, PE dry stamp, and more One-tool attachment Mill aluminum 6000 series
