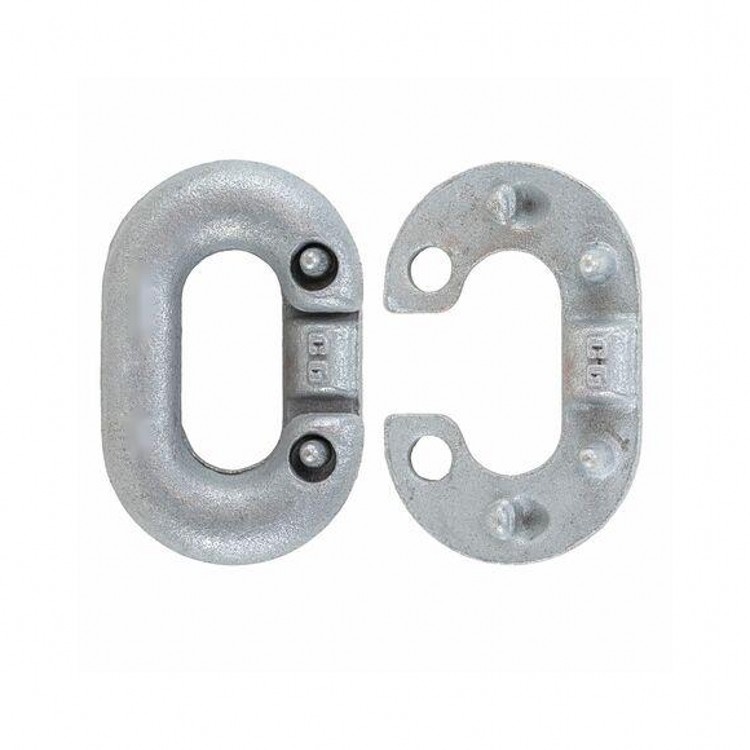

Chain Missing Link Replacement Links G-335 Chain Size Working Load Limit Links Per Box Weight Per 100 Dimensions (in.) in. lbs.* lbs. A B c D E F G 3/16‘’ 800 20 2.50 0.25 0.69 0.34 0.34 1.19 0.78 0.28 1/4‘’ 1.325 10 6.25 0.28 0.88 0.44 0.44 1.50 1.00 0.31 5/16‘’ 1.950 10 12.50 0.34 0.94 0.47 0.47 1.69 1.16 0.38 3/8‘’ 2,750 10 20.00 0.41 1.13 0.56 0.56 2.06 1.38 0.47 7/16‘’ 3.625 10 27.50 0.47 1.28 0.59 0.59 2.34 1.53 0.53 1/2‘’ 4,750 10 37.50 0.53 1.47 0.66 0.66 2.66 1.72 0.59 5/8‘’ 7,250 10 72.50 0.66 1.81 0.78 0.81 3.31 2.09 0.75 3/4‘’ 10.250 10 122.50 0.78 2.13 0.94 1.06 3.88 2.50 0.88 7/8‘’ 12.000 Bulk 175.00 0.91 2.50 1.13 1.13 4.50 2.94 1.00 1‘’ 15.500 Bulk 250.00 1.03 2.75 1.25 1.25 5.00 3.31 1.13 Ultimate Load is 4 times the Working Load Limit. Rivets Only – No interlocking lugs. Has reinforced rivet holes. All sizes have countersunk rivet holes. WARNING: Not Suitable for use with Grade 80 or Grade 100 chain and chain slings used in overhead lifting. Reliable Chain Missing Link Supplier Kailipu is one of the most professional rigging equipment supplier and exporter in China, specialized in all kinds of rigging hardware, welded chain, wire rope, lifting webbing sling, pulley, ect. G335 chain missing link is one of the common chain fittings. Kailipu produces and exports all kinds of materials and tonnage rigging hardware and chain component. If you need a professional chain missing link supplier, let Kailipu be your first choice. Kailipu will work with you to make better rigging, lifting and material handling products. For any more help, e-mail our specialists at [email protected] for assistance.
