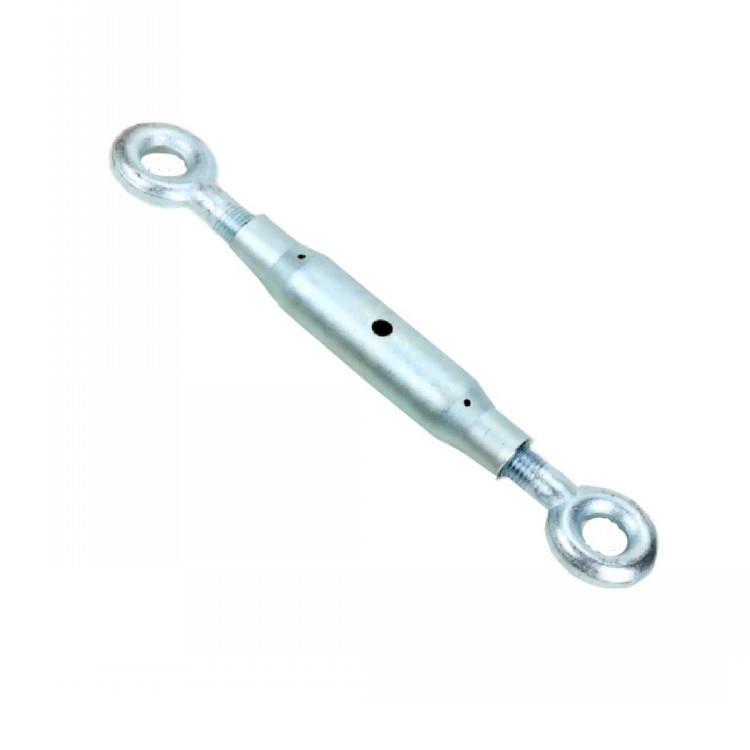

PIPE TURNBUCKLE DIN 1478 EYE -EYE Pipe turnbuckle eye and eye DIN 1478 is a type of rigging turnbuckle with eyes at both ends and a closed pipe body. These eyes can be used to attach the turnbuckle to other components, such as anchor points, hooks, or shackles, allowing for easy connection and adjustment of tension in the system. pipe turnbuckle din 1478 eye-eye china supplier DIMENSIONS: Size L1(mm) L2(mm) L3(mm) φ1(mm) φ2(mm) φ3(mm) A(mm) M(mm) S.W.L U.W. kgs kgs M6 110 88 58 15 11.2 6 8 6 230 0.15 M8 110 105 65 17 14 8 10 8 440 0.26 M10 125 125 75 21 16 8 12 8 440 0.45 M12 125 145 85 25 18 10 16 10 600 0.66 M16 170 170 100 30 22.8 10 20 12 800 1.51 M20 200 184 115 34 27 12 24 16 1650 2.93 M24 255 214 130 42 32 12 30 20 2600 5 M30 255 251 140 51 38 16 36 24 3400 9.97 M36 295 300 170 63.5 50 16 45 28 4800 14.8 PIPE TURNBUCKLE END TYPES Common Uses of Din 1478 Pipe Turnbuckle The din 1478 Turnbuckle is commonly used in applications such as rigging, shipbuilding, construction, and other scenarios where adjustable tensioning is required. It provides a reliable and straightforward means to tighten or loosen cables or rods, making it useful in a variety of settings. NOTE: It’s essential to use turnbuckles that conform to recognized standards like DIN 1478, as they have been designed and tested to meet specific requirements. Proper selection and installation of turnbuckles are critical to ensure safe and reliable performance in various applications. Always follow the manufacturer’s guidelines and safety precautions when using turnbuckles. Professional Turnbuckle Supplier in China Kailipu is a professional turnbuckle supplier and manufacturer in China. We supply hundreds of high-quality turnbuckles. For any more help, e-mail our specialists at [email protected] for assistance.
