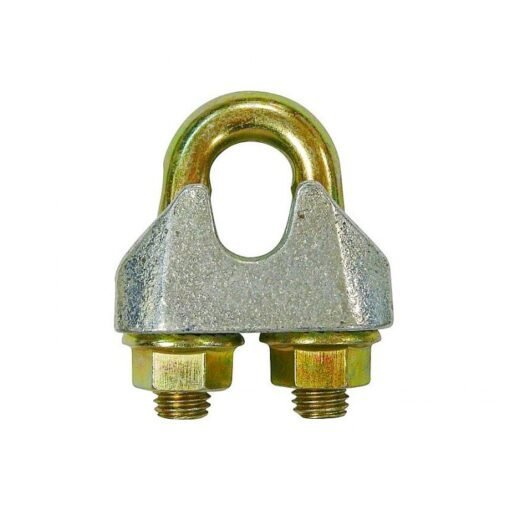

DIN1142 wire rope clips, also known as DIN1142 Malleable Rope Clamp. The body is cast from Malleable iron and the U bolt is stamped from round steel. It is commonly used in static bolted and rope fastening, such as electric power, communications line, band fastening, etc. THE COMPONENTS OF DIN1142 The DIN 1142 wire rope clamp typically consists of the following components: 1. U-shaped body: This is the main part of the clip, which has a U-shape that wraps around the wire rope. 2. Saddles: The clip usually has two saddles, one on each side of the U-shaped body. These saddles hold the loose end of the wire rope in place when properly installed. 3. Nuts and bolts: The wire rope clip comes with nuts and bolts that secure the saddles to the U-shaped body, effectively clamping the wire rope in place. SIZE DIMENSIONS IN MM WT/100PCS (MM) A B C D F E G (KGS) 5 25 13 13 5 13 7 25 2.08 6.5 30 14 16 6 17 8 32 4 8 39 18 20 8 20 10 41 8.2 10 40 21 20 8 24 12 46 9.2 13 55 29 28 12 30 15 64 27.5 16 64 35 32 14 35 18 76 43 19 68 40 32 14 36 22 83 49 22 74 44 34 16 40 24 96 68 26 84 51 38 20 50 26 111 117 30 95 59 41 20 55 34 127 140 34 105 67 45 22 60 38 141 213 40 117 77 49 24 65 44 159 268 NOTE: Installation of DIN 1142 clamps must follow specific guidelines to ensure a safe and secure termination. Improper installation can lead to failure and potential hazards. Therefore, it’s crucial to adhere to the manufacturer’s recommendations and guidelines provided with the wire rope clip.
