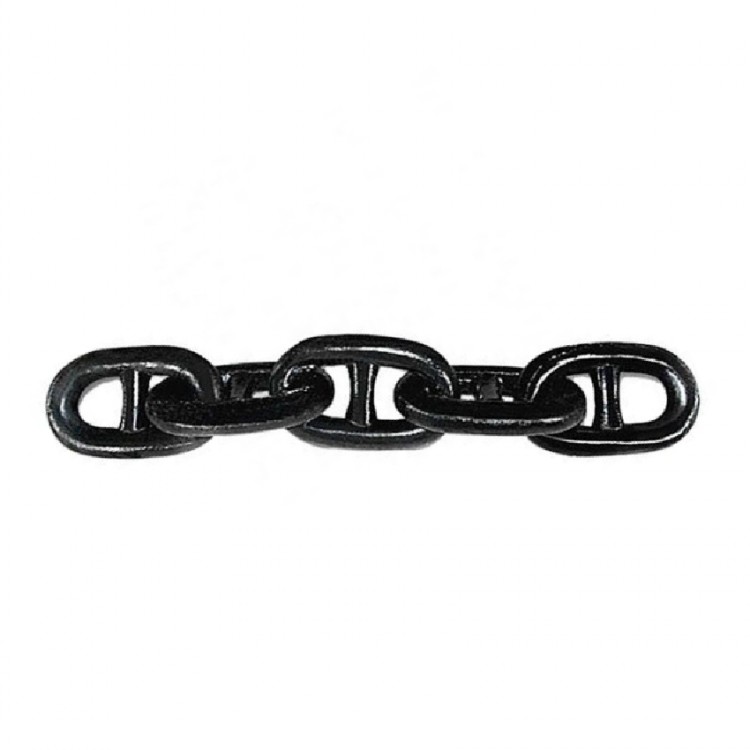

STUD LINK ANCHOR CHAIN

DIMENSIONS Stud Link Anchor Chain Chain Size Link Length Link Width Length over 5 Links Grip Radius Weight per 15 fathom shot Links per 15 fathom shot Inches mm A B C D 5/8 16 3-3/4 2-1/4 13-3/4 13/32 365 432 3/4 19 4-1/2 2-5/8 16-1/2 1/2 480 357 13/16 20 4-7/8 2-7/8 17-7/8 17/32 570 329 7/8 22 5-1/4 3-1/8 19-1/4 37/64 660 305 15/16 24 5-5/8 3-5/16 20-5/8 5/8 760 285 1 25 6 3-9/16 22 21/32 860 267 1-1/16 27 6-3/8 3-3/4 23-3/8 11/16 970 251 1-1/8 28 6-3/4 4 24-3/4 25/32 1,080 237 1-3/16 30 7-1/8 4-1/4 26-1/8 25/32 1,220 225 1-1/4 32 7-1/2 4-1/2 27-1/2 25/32 1,350 213 1-5/16 33 7-7/8 4-3/4 28-7/8 7/8 1,490 203 1-3/8 34 8-1/4 4-15/16 30-1/4 7/8 1,630 195 1-7/16 36 8-5/8 5-3/16 31-5/8 15/16 1,780 187 1-1/2 38 9 5-3/8 33 63/64 1,940 179 1-9/16 40 9-3/8 5-5/8 34-3/8 1-1/32 2,090 171 1-5/8 42 9-3/4 5-7/8 35-3/4 1-1/16 2,240 165 1-11/16 43 10-1/8 6-1/16 37-1/8 1-3/32 2,410 159 1-3/4 44 10-1/2 6-5/16 38-1/2 1-5/32 2,590 153 1-13/16 46 10-7/8 6-1/2 39-7/8 1-3/16 2,790 147 1-7/8 48 11-1/4 6-3/4 41-1/4 1-1/4 2,980 143 1-15/16 50 11-5/8 7 42-5/8 1-9/32 3,180 139 2 51 12 7-3/16 44 1-5/16 3,360 133 2-1/16 52 12-3/8 7-7/16 45-3/8 1-3/8 3,570 129 2-1/8 54 12-3/4 7-5/8 46-3/4 1-27/64 3,790 125 2-3/16 56 13-1/8 7-7/8 48-1/8 1-15/32 4,020 123 2-1/4 58 13-1/2 8-1/8 49-1/2 1-1/2 4,250 119 2-5/16 59 13-7/8 8-5/16 50-7/8 1-17/32 4,490 117 2-3/8 60 14-1/4 8-9/16 52-1/4 1-9/16 4,730 113 2-7/16 62 14-5/8 8-3/4 53-5/8 1-5/8 4,960 111 2-1/2 64 15 9 55 1-5/8 5,270 107 2-9/16 66 15-3/8 9-1/4 56-3/8 1-11/16 5,540 105 2-5/8 67 15-3/4 9-7/16 57-3/4 1-11/16 5,820 103 2-11/16 68 16-1/8 9-11/16 59-1/8 1-3/4 6,110 99 2-3/4 70 16-1/2 9-7/8 60-1/2 1-13/16 6,410 97 2-13/16 71 16-7/8 10-1/8 61-7/8 1-27/32 6,710 95 2-7/8 73 17-1/4 10-3/8 63-1/4 1-7/8 7,020 93 2-15/16 75 17-5/8 10-9/16 64-5/8 1-7/8 7,330 91 3 76 18 10-13/16 66 2 7,650 89 3-1/16 78 18-3/8 11 67-3/8 2 7,980 87 3-1/8 79 18-3/4 11-1/4 68-3/4 2-1/16 8,320 85 3-3/16 81 19-1/8 11-1/2 70-1/8 2-1/16 8,660 85 3-1/4 83 19-1/2 11-11/16 71-1/2 2-1/8 9,010 83 3-5/16 84 19-7/8 11-15/16 72-7/8 2-1/8 9,360 81 3-3/8 86 20-1/4 12-1/8 74-1/4 2-3/16 9,730 79 3-7/16 87 20-5/8 12-3/8 75-5/8 2-3/16 10,100 77 3-1/2 90 21 12-5/8 77 2-5/16 10,500 77 3-5/8 92 21-3/4 12-15/16 79-3/4 2-5/16 11,300 73 3-3/4 95 22-1/2 13-3/8 82-1/2 2-15/32 12,000 71 3-7/8 98 23-1/4 14 85-1/4 2-15/32 12,900 69 4 102 24 14-3/8 88 2-5/8 13,700 67 Stud link anchor chains come in various sizes and dimensions to match the requirements of different vessels and applications. The size of the chain is typically specified by its diameter, measured in millimeters or inches. What is the Stud Link Anchor Chain? As we mentioned above, a stud link anchor chain is a type of chain commonly used in marine applications. particularly for anchoring ships or offshore structures. Besides the structure can provide strength, durability, and reliability in challenging marine environments.   Note: It’s important to note that the selection and usage of stud link anchor chains should be done in accordance with industry best practices, regulations, and the specific requirements of the vessel or offshore structure. Consulting with marine experts or referring to relevant guidelines is advised to ensure safe and effective usage. At Kailipu, we offer various styles of marine chains. For any more help, e-mail our specialists at [email protected] for assistance.
