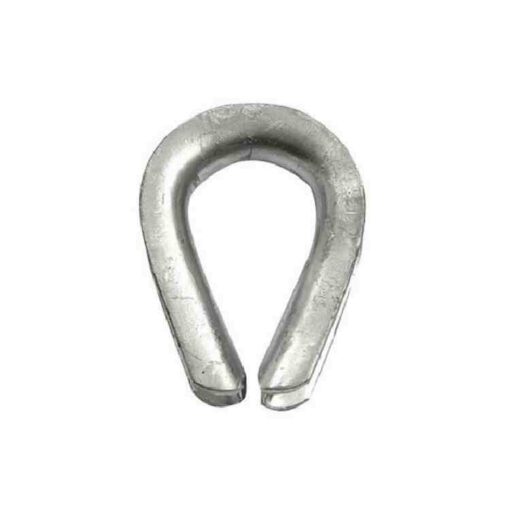

G414 Thimble China Supplier / G414 US type heavy duty wire rope thimbles U.S. TYPE G-411 LIGHT DUTY WIRE ROPE THIMBLE SIZE DIMENSIONS(MM) WEIGHT IN. A B C D E F KG/PC 1/8″ 49.28 33.27 27 17.5 6.35 4 0.013 3/16″ 49.28 33.27 27 17.5 7.87 5 0.013 1/4″ 49.28 33.27 27 17.5 9.65 7 0.013 5/16″ 54 38 31.75 20.57 11.18 8.6 0.016 3/8″ 60.5 41 37 23.88 13.46 10.4 0.026 1/2″ 69.85 47.75 44.45 28.7 17.53 13.5 0.052 5/8″ 89 57.15 60.45 35.05 23.11 16.8 0.145 3/4″ 95.25 63.5 68.33 41.4 27.43 19.8 0.2 7/8″ 127 88.9 81.03 47.75 32.26 23.88 0.32 1″ 169.93 107.95 95.25 63.5 35.3 26.92 0.4 1-1/8″-1-1/4″ 158.75 114.3 109.47 69.85 44.45 33.27 0.84 1-3/8″ 207 191.5 145 90 48 36 1.36 1-1/2″ 225 206 165 105 51.62 39.62 1.42 1-5/8″ 248 230 176 110 59 43 1.64 1-3/4″ 264 243.5 180 110 62 46 1.94 1-7/8″ 283 264 186 114.3 68 52 2.14 2″ 289 270 188 114.3 69 53 4.94 2-1/2″ 316.3 295.3 252 152 84 64 7.4 Note: When sizing the thimble to wire rope, it’s important to size the thimble to the actual size of the rope that you are using with it. For example, if you are using 1″ uncoated cable, use a 1″ thimble. Looking for G414 thimble supplier in china? We are always there for you! For any more help, e-mail our specialists at [email protected] for assistance. You May Also Like: G411 US type light duty thimble,Tube Wire Rope Thimble
