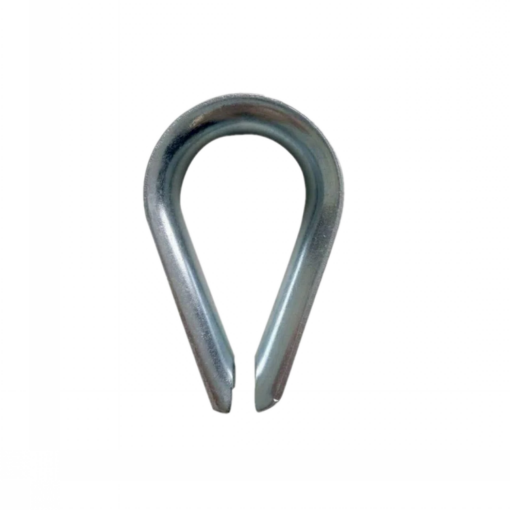

G411 Thimble China Exporter / G411 US type light duty wire rope thimble U.S. TYPE G-411 LIGHT DUTY WIRE ROPE THIMBLE SIZE DIMENSIONS(MM) WEIGHT IN. A B C D E F KG/PC 1/8″ 49.28 33.27 27 17.5 6.35 4 0.013 3/16″ 49.28 33.27 27 17.5 7.87 5 0.013 1/4″ 49.28 33.27 27 17.5 9.65 7 0.013 5/16″ 54 38 31.75 20.57 11.18 8.6 0.016 3/8″ 60.5 41 37 23.88 13.46 10.4 0.026 1/2″ 69.85 47.75 44.45 28.7 17.53 13.5 0.052 5/8″ 89 57.15 60.45 35.05 23.11 16.8 0.145 3/4″ 95.25 63.5 68.33 41.4 27.43 19.8 0.2 7/8″ 127 88.9 81.03 47.75 32.26 23.88 0.32 1″ 169.93 107.95 95.25 63.5 35.3 26.92 0.4 1-1/8″-1-1/4″ 158.75 114.3 109.47 69.85 44.45 33.27 0.84 1-3/8″ 207 191.5 145 90 48 36 1.36 1-1/2″ 225 206 165 105 51.62 39.62 1.42 1-5/8″ 248 230 176 110 59 43 1.64 1-3/4″ 264 243.5 180 110 62 46 1.94 1-7/8″ 283 264 186 114.3 68 52 2.14 2″ 289 270 188 114.3 69 53 4.94 2-1/2″ 316.3 295.3 252 152 84 64 7.4 Note: When sizing the thimble to wire rope, it’s important to size the thimble to the actual size of the rope that you are using with it. For example, if you are using 1″ uncoated cable, use a 1″ thimble. Kailipu is a top wire rope thimble manufacturer and supplier in China. We supply various kinds of thimbles. Among them, the European type DIN6899B, US type G411 and G411 are the most representative. And our thimble specifications from 3mm to 130mm covers, which almost all sizes you will need. Looking for G411 thimble china exporter? We are always there for you! For any more help, e-mail our specialists at [email protected] for assistance. You May Also Like: G414 US type heavy duty thimble
