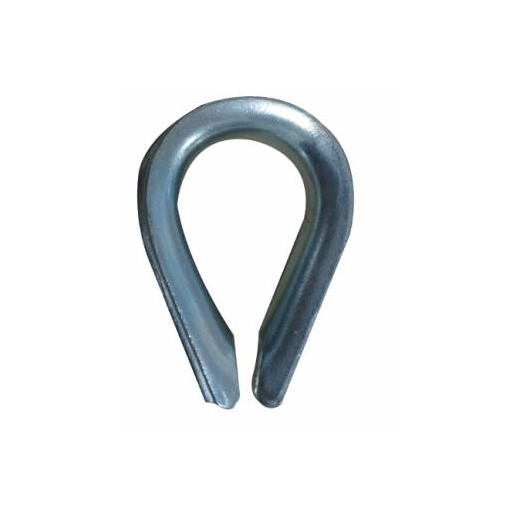

Din 6899B Wire Rope Thimble DIN 6899B wire rope thimble is a type of wire rope fitting used in rigging and lifting applications. Thimbles are used to protect the eye of a wire rope or sling, preventing it from being crushed or worn through during use. They provide a hard, smooth surface that can help to maintain the integrity and strength of the wire rope. Dimensions DIN 6899B WIRE ROPE THIMBLE SIZE DIMENSIONS(MM) WEIGHT MM A B C D E F KG/100PCS 3 28 19 18.5 12 6 3 0.5 4 30 21 20.5 13 7 4 0.8 5 33 23 22.5 14 8 5 1 6 39 26 27 16 10 6 1.6 7 43 30 30 18 11 7 1.9 8 48 32 33 20 12 8 3 10 58 38 39 24 14 10 4.7 12 69 45 47 28 17 12 6.8 13 73 48 50 30 18 13 8 14 77 51 53 32 19 14 10 16 88 58 60 36 22 16 14.5 17 95 61 65 38 25 17 18 18 100 64 68 40 26 18 20 20 113 72 75 45 28 20 29 22 123 80 82 50 30 22 32 24 135 90 92 56 34 24 47 26 145 99 100 62 36 26 59 28 162 112 110 70 38 28 80 30 175 120 120 75 42 30 110 How to choose the correct size of Din 6899B thimbles? Choosing the correct size of DIN 6899B thimbles is crucial to ensure the safety and efficiency of your rigging operations. Here are the steps to choose the right size: Determine Wire Rope Diameter: Measure the diameter of the wire rope you are using. The thimble size must match the wire rope diameter to provide a proper fit. Check DIN 6899B Specifications: Refer to the DIN 6899B standard specification table for thimble sizes. This table lists the appropriate thimble size corresponding to various wire rope diameters. Ensure Proper Fit: The thimble should fit snugly into the loop or eye of the wire rope without leaving excessive space or causing deformation. A proper fit ensures that the load is evenly distributed and prevents damage to the wire rope. Consider Load and Environment: Assess the working load limit (WLL) requirements and environmental conditions (e.g., marine, industrial) to choose a thimble material and coating that provides adequate strength and corrosion resistance. Example Specification Table (for reference): Wire Rope Diameter (mm) Thimble Size (mm) 2 – 3 4 4 – 5 6 6 – 7 8 8 – 9 10 10 – 11 12 12 – 13 14 14 – 15 16 16 – 17 18 18 – 19 20 20 – 22 22 22 – 24 24 24 – 26 26 26 – 28 28 By following these steps and considering the relevant factors, you can ensure the correct selection of DIN 6899B thimbles for your wire rope applications. Looking for DIN 6899B Thimble China Manufacturer? We are always there for you! For any more help, e-mail our specialists at [email protected] for assistance. You May Also Like:European Type Wire Rope Thimble,DIN 6899A Wire Rope Thimble
