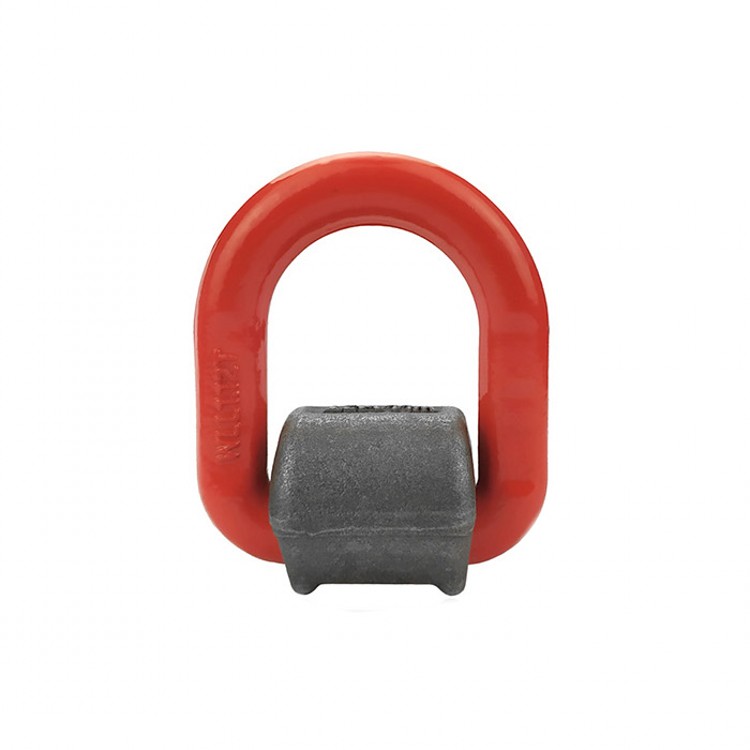

Weld-on pivoting link / Grade 80 Weld on Lifting Point

Grade 80 Weld on Lifting Point WLL Dimension(mm) Weight (t) A B D E F L (kg) 1.12 36 40 11 67 42 35 0.28 2 37 42 13 73 45 37 0.39 3.15 41 45 16.5 80 47 40 0.62 4 43 48 18 83 51 45 0.75 5.3 61 55 22 97 53 50 1.4 8 63 70 25 120 73 64 2.3 15 89 97 33 163 92 90 5.5 Number of legs 1 2 1 2 2 2 2  3-4  3-4  3-4 Load directions 0° 0° 90° 90° 0-45° 45-60° unsymm 0-45° 45-60° unsymm Size(t) 1.12 1.12 2.24 1.12 2.24 1.5 1.12 1.12 2.3 1.6 1.12 2 2 4 2 4 2.8 2 2 4.2 3 2 3.15 3.15 6.3 3.15 6.3 4.4 3.15 3.15 6.6 4.7 3.15 5.3 5.3 10.6 5.3 10.6 7.4 5.3 5.3 11.2 7.9 5.3 8 8 16 8 16 11.3 8 8 16.9 12 8 15 15 30 15 30 21 15 15 31.8 22.5 15 4 6 8 4 8 5.6 4 4 8.4 6 4 WARNING: Loads may disengage from link if proper welding,assembly, and lifting procedures are not used. A falling load may cause serious injury or death. Do not use with damaged slings or chain. For sling inspection criteria see ASME B30.9. Read and understand these instructions before welding on, or using the pivoting link. Grade 80 Weld on Lifting Point Inspection / Maintenance: Always inspect before use. Regularly inspect weld-on pivoting link parts (Figure 3). Never use weld-on pivoting link that shows signs of corrosion, wear or damage. Never use weld-on pivoting link if bail is bent or elongated. Do not use part showing cracks, nicks or gouges. Always make sure there are no spacers used between weld-on pivoting link and the mounting surface. Always be sure workpiece surface is in total contact with the weld-on pivoting link base mating surface. Always inspect the weld-on pivoting link bail and base for wear. A visual periodic inspection of the weld should be performed. Check the weld visually, or use a suitable NDE method if required. Kailipu-China supplier manufacturer of Grade 80 Weld on Lifting Point pivoting link For any more help, e-mail our specialists at [email protected] for assistance. Similar items: GRADE 80 EYEBOLT/Alloy Steel Eye Bolt
