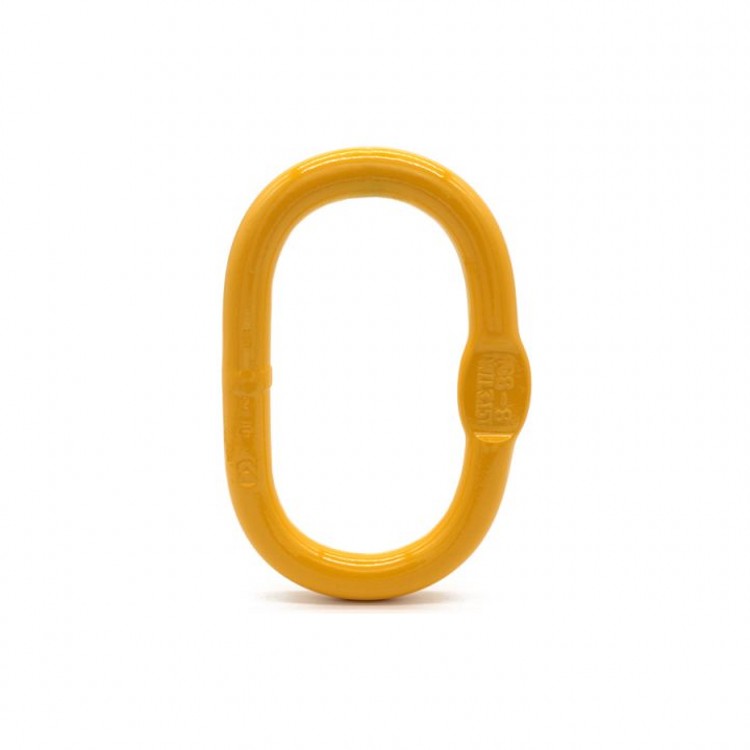

G80 Oblong Link Welded Master Link A344 G80 welded oblong link A344 also called a Welded Master Link, features a large inside width and length area, allows additional room for single and multiple leg slings. It is stamped with “G80” or “8” for easy identified and suitable for the chain slings, pressing flat only on request, which can be used with Grade 80 connect link. It is a high quality piece of lifting gear, mainly used in overhead lifting, picking, placing, and towing applications. DIMENSIONS N.W. (kg) Chain (in) W.L.L. (T) WLL(T) Rope Dimensions(mm) 1 Leg 2 Legs A B D S 0.27 1/4 1.12 1.6 1.6 100±5 60±5 12±1 6 0.5 9/32 1.5 — 0.38 9/32 1.5 2.12 2.5 100±5 60±5 14±1 7.6±0.5 5/16 2 — 0.85 5/16 2 2.8 4 160±6 90±5 18±1 8.4±0.5 3/8 3.15 — 1.2 3/8 3.15 4.25 6.5 160±6 90±5 20±1 10.5±0.5 1/2 5.3 — 1.63 1/2 5.3 7.5 8 180±6 100±5 22±1 13.5±0.5 5/8 8 — 2.13 5/8 8 11.2 11.5 180±6 100±5 25±1 16.5±0.5 19mm 11.2 — 3.81 3/4 12.5 — 11.8 270±7 140±6 28 1/-2 19±0.5 5.05 19mm 11.2 16 16 270±7 140±6 32 1/-2 19±0.5 7/8 15 — 6.83 7/8 15 21.2 24 285±7 155±6 36 1/-2 20±0.5 1 21.2 — 8.9 28mm 25 — 25 300±8 160±6 40 1/-2 26±0.5 12.8 1 21.2 30 31.5 340±10 180±6 45 1/-2 26±0.5 1 1/4 31.5 — 17.3 1 1/4 31.5 45 45 390±10 215±7 51 1/-2 32±0.5 Proof test at 2.5 times Working Load Limit, safety factor is 5 : 1 for rope sling or 4:1 for chain sling. Professional Oblong Link Supplier Kailipu is one of the most professional rigging equipment supplier and exporter in China, specialized in all kinds of rigging hardware, welded chain, wire rope, lifting webbing sling, pulley, ect. G80 oblong link or master linkis one of the common rigging chain accessories. Kailipu produces and exports all kinds of materials and tonnage rigging lifting and towing chain components. If you need a professional rigging master oblong link supplier, let Kailipu be your first choice. Kailipu will work with you to make better rigging, lifting and material handling products. For any more help, e-mail our specialists at [email protected] for assistance.
