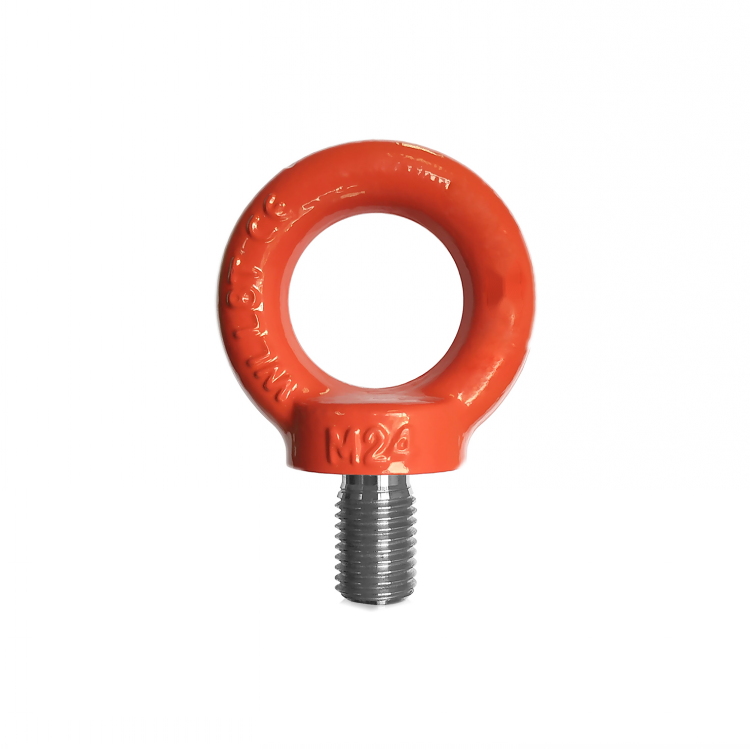

GRADE 80 EYEBOLT/G80 Alloy Steel Eye Bolt Size(mm) WLL M N D K L O Weight t kgs M6 0.4 6 16 28 13 42 16 0.05 M8 1 8 20 36 15 51 20 0.06 M10 1 10 25 45 18 63 25 0.11 M12 2 12 30 54 22 75 30 0.18 M16 4 16 35 63 28 88 35 0.28 M20 6 20 40 72 30 101 40 0.45 M24 8 24 50 90 38 128 50 0.87 M30 12 30 60 108 45 154 60 1.66 M36 16 36 70 126 55 183 70 2.65 M42 24 42 80 144 65 212 80 4.03 M48 32 48 90 166 70 238 90 6.38 Applications Eye bolts and eye nuts are used for lifting machines, appliances or any other objects which cannot be lifted by hand or by fork lift truck. when used as a lifting device, the eye bolt or eye nut should always be fully screwed into the load in such a way that it fits properly against the load. Kailipu-China supplier manufacturer of Grade 80 eyebolt alloy steel eye bolt. For any more help, e-mail our specialists at [email protected] for assistance. Similar items: DIN 580 Eye Bolt
