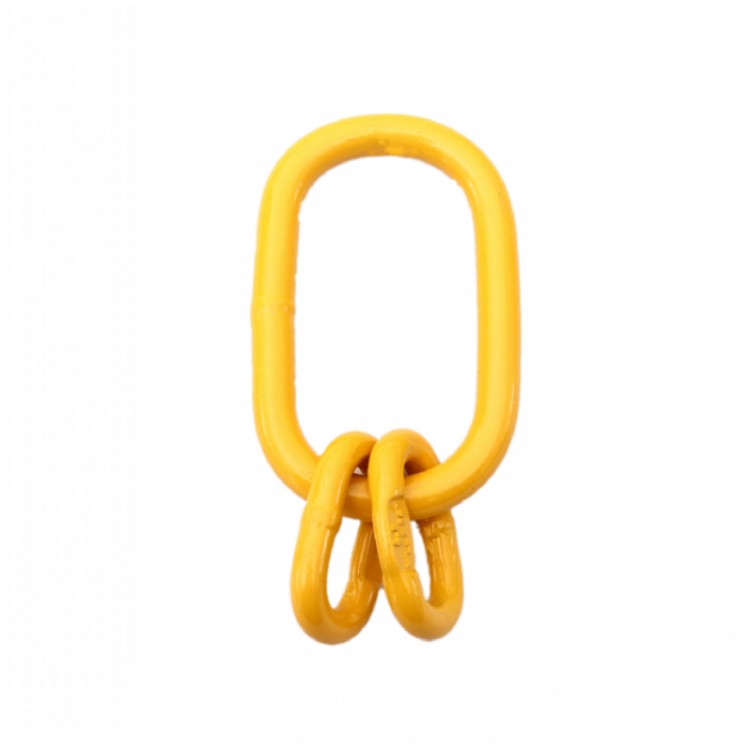

A346 Master Link Assembly A346 Master Link Assembly is also called G80 Quad Link Assemblies. The sub-assemblies are made from alloy steel for chain slings or wire rope slings with 3 or 4 legs. The subrings will have an engineered flat upon request to avoid mismatching. The master link assembly is suitable for G80 EN818-2 lifting chains. Sizes range from 5.5T to 56.8T and can be customized. Master Link Assembly A346 Used for general lifting adaptable for straight pull, vertical hitches – Ideal for steel mills, foundries and machine operation ect. a346 master link assembly-China supplier and exporter-kailipu DIMENSIONS Size G80 EN818-2 CHAIN WEIGHT WLL DIMENSION(MM) FOR 3 OR 4 LEG SLING (KG) (T) A B D a b d 6-8 6 1.18 2.36 135 75 18 54 25 13 7-8 7 1.24 3.15 135 75 18 50 38 13 8-8 8 2.2 4.25 160 90 22 70 34 16 10-8 10 3.4 6.7 180 100 26 85 40 18 13-8 13 6.1 11.2 200 110 32 115 50 22 16-8 16 9.98 17 260 140 36 140 65 26 18-8 18 18.9 21.2 340 180 45 180 100 32 20-8 20 22.6 26.5 350 190 50 180 100 32 22-8 22 25.2 31.5 350 190 50 180 100 36 26-8 26 35.2 45 400 200 56 180 100 40 28-8 28 47 50 130 220 63 180 100 45 32-8 32 66.46 63 460 250 72 200 110 50 Key Features Of A346 Master Link Assembly 1. It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated; 2. Each workpiece should pass testing at 2 times of working load limit 3. We should carry out strict sampling and breakage testing for each batch of products; 4. We should carry out 100% magnetic powder flaw detection 5. Surface treatment: plastics spraying 6. Color code: red RAL3020/yellow RAL1003. 7. For G80 3-leg or 4-leg chain slings. Professional A346 Master Link Assembly Supplier Kailipu is one of the most professional rigging equipment supplier and exporter in China, specialized in all kinds of rigging hardware, welded chain, wire rope, lifting webbing sling, pulley, ect. A346 master link assembly is one of the common rigging chain accessories. Kailipu produces and exports all kinds of materials and tonnage rigging lifting and towing chain components. If you need a professional rigging master link supplier, let Kailipu be your first choice. Kailipu will work with you to make better rigging, lifting and material handling products. For any more help, e-mail our specialists at [email protected] for assistance.
