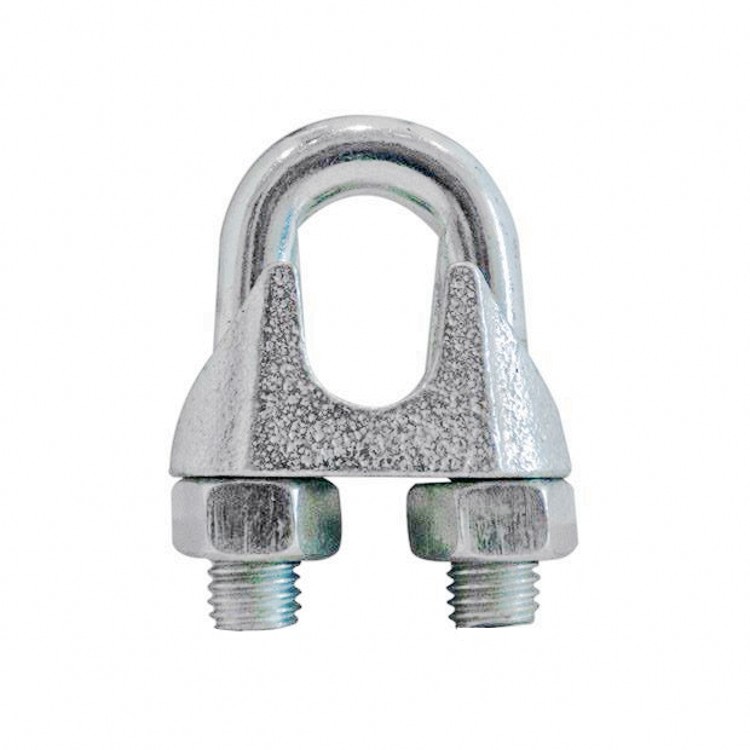

WIRE ROPE FASTENER Wire rope fastener, also known as wire rope clamps, are devices used to secure the ends of wire ropes or cables together, creating loops or connections. They are commonly used in various industries such as construction, marine, and rigging. Cable clamps help maintain the integrity and strength of wire rope connections while preventing fraying and separation. cable clamps for wire rope DIMENSIONS SIZE IN A MM B MM C MM D MM E MM F MM G MM 1/8 9 12 12 4 9.5 19 20 3/16 11 13.5 14 5 10.8 22 26 1/4 12.5 15.5 14 6 11.5 25 26 5/16 15.5 18 16 6 16 31 31 3/8 21 22 20 8 20 40 37 1/2 25 25 24 10 26 47 46 5/8 30 28 28 12 31 55 57 11/16 33 28.5 30 12 35 58.5 64 3/4 36.5 31 34 16 36 65 71 7/8 40 36 38 16 43 72 77 1 45 40 44 20 48 80 88 Types of Wire Rope Fastener: 1. Type A Wire Rope Clamp: This is the most common type of wire rope clamp, as described in the previous response. It consists of a U-bolt, saddle, and nuts that secure the wire rope by clamping it together. 2. Type B Wire Rope Clamp: Similar to Type A, but it has a base plate that provides additional stability and distributes the load more evenly across the wire rope. 3. Type C Wire Rope Clamp: This type of clamp is used for splicing two wire ropes together. It consists of a U-bolt and two saddles, one on each side of the splice. 4. DIN 741 Wire Rope Clamp: A specific type of wire rope clamp that conforms to the DIN 741 standard. It has a specific shape and design for its U-bolt and saddle. cable clamps for wire rope The Installation The installation of wire rope fastener follows a specific process to ensure proper performance and safety. Here are the general steps: 1. Positioning: Position the U-clamp around the wire rope where the loop or connection is desired. 2. Saddle Placement: Place the saddle plate on top of the wire rope, centered over the U-bolt. 3. Nuts Installation: Screw the two nuts onto the threaded ends of the U-bolt and tighten them alternately. Ensure they are tightened to the specified torque, following the manufacturer’s guidelines. 4. Check Tightness: After installation, check the tightness of the nuts regularly, especially during the initial period of use and periodically thereafter, to ensure they remain secure. It’s important to follow the manufacturer’s instructions and guidelines when installing the wire rope fastener to ensure a proper and secure connection. Incorrect installation or the use of the wrong number of clips for a given wire rope diameter can compromise the strength and safety of the connection. Professional Wire Rope Fastener Manufacturer in China Kailipu is one of the most professional cable clamps supplier and manufacturer in China. We manufacture and export wire rope clips of various type and materials. Such as DIN 741, DIN 1142, US malleable, drop forged galvanized and stainless steel,etc. For any more help, e-mail our specialists at [email protected] for assistance.
