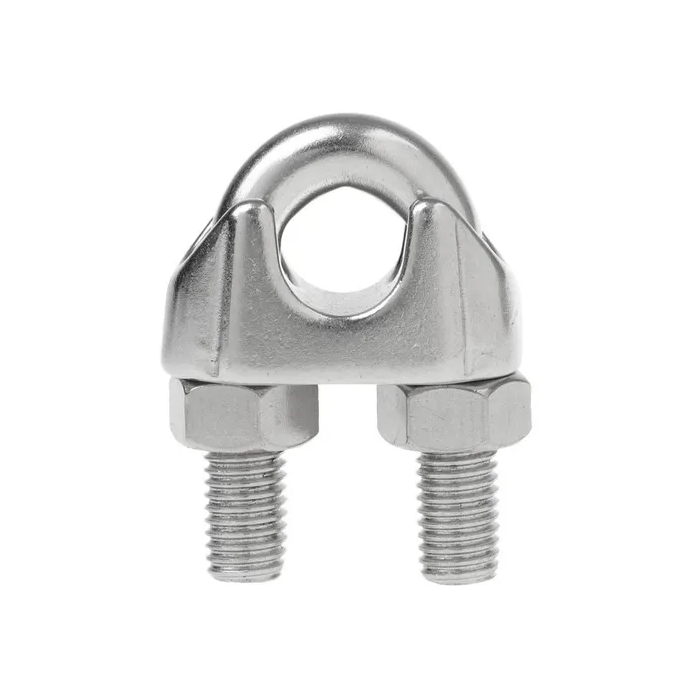

STAINLESS STEEL CABLE CLAMPS Stainless steel cable clamps, also known as stainless steel wire rope clamps or stainless steel cable clips, are a type of hardware used to fasten the ends of stainless steel wire ropes or cables together. These clamps are designed to provide a secure and durable connection that is resistant to corrosion and suitable for use in outdoor, marine, and harsh environments. DIMENSIONS DIN 741 TYPE SIZE MM A MM B MM C MM D MM E MM F MM G MM W/100PCS KGS 3MM M4 21 10 10 9 12 16.6 1.4 5MM M5 23 10 11 11 13 19.65 1.5 6MM M5 26 11 12 13 15 23.65 2.1 8MM M6 30 15 14 16 19 28.85 4.1 10MM M8 34 17 18 19 22 35 6.8 11MM M8 36 18 19 20 22 37 7.2 13MM M10 40 21 23 24 30 46.24 13 14MM M10 44 22 23 25 30 48.24 13.5 16MM M12 50 26 26 29 33 52.5 21 19MM M12 54 30 29 32 38 64.5 28 22MM M14 61 34 33 37 44 72.5 40 26MM M14 65 37 35 41 45 82.5 44 30MM M16 74 43 37 48 50 95.6 66 34MM M16 80 50 42 52 55 105.6 85 40MM M16 88 55 45 58 60 125.6 104 40/50MM M20 105 63 52 69 98 176 200 NOTE: It’s essential to follow the manufacturer’s instructions and guidelines when installing wire rope clips to ensure proper usage and safety. Incorrect installation can compromise the strength and reliability of the connection, leading to potential accidents. KEY FEATURES OF STAINLESS STEEL CABLE CLAMPS 1. Material: They are made from stainless steel, which offers excellent corrosion resistance and durability. Stainless steel is particularly suitable for applications where exposure to moisture, saltwater, or other corrosive elements is a concern. 2. U-Bolt Design: Like traditional wire rope clips, stainless steel cable clamps have a U-bolt shape that allows the wire rope to pass through it. 3. Saddle Plate: The clamps have a saddle plate or saddle that fits around the base of the U-bolt and sits on top of the wire rope. 4. Nuts: Two nuts are used to secure the U-bolt and saddle plate together, creating a tight grip on the wire rope. stainless steel wire rope clamp The Installation Of Stainless Steel Cable Clamps Stainless steel cable clamps are commonly used in marine applications, outdoor rigging, architectural applications, and anywhere that requires a durable and corrosion-resistant wire rope connection. They come in various sizes to accommodate different wire rope diameters. When installing stainless steel cable clamps, it is essential to follow the manufacturer’s instructions and guidelines to ensure a proper and safe connection. Additionally, always use the appropriate number of clamps and ensure they are correctly spaced according to the wire rope diameter and the specific application requirements. Regularly inspect the clamps and wire rope for signs of wear, damage, or loosening to maintain the integrity of the connection over time. As with any rigging hardware, it is essential to select the appropriate size and type of cable clamps based on the intended use and the specific load requirements. If you have specific application requirements or safety concerns, it is advisable to consult with a professional rigging expert or engineer to ensure the proper selection and installation of stainless steel clamps. Professional Wire Rope Fittings Manufacturer in China Kailipu is one of the most professional wire rope clips/clamps supplier and manufacturer in China. We manufacture and export wire rope clips of various type and materials. Such as DIN 741, DIN 1142, US malleable, drop forged galvanized and stainless steel,etc. For any more help, e-mail our specialists at [email protected] for assistance.
