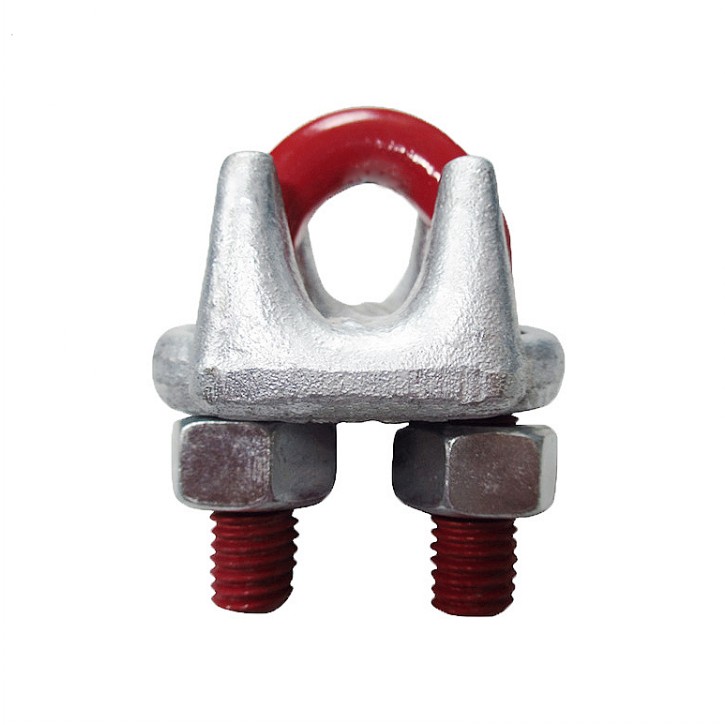

FORGED WIRE ROPE CLIP G450 US forged type wire rope clip also known as crosby g450 wire rope clips. Its body or base is drop forged. So it looks thicker and harder than other types of wire rope clips. Their finishes are usually full hot dip galvanizing or only body in HDG, bolt in zinc plating or painting. So G 450 forged wire rope clip has good fixing force and corrosion resistance. DIMENSIONS ROPE SIZE WEIGHT /100(LBS.) DIMENSIONS (IN.) (IN.) (MM) A B C D E F G H 1/8″ 3-4 6 0.22 0.72 0.44 0.47 0.37 0.38 0.81 0.99 3/16″ 5 10 0.25 0.97 0.56 0.59 0.50 0.44 0.64 1.18 1/4″ 6-7 19 0.31 1.03 0.50 0.75 0.66 0.56 1.19 1.43 5/16″ 8 28 0.38 1.38 0.75 0.88 0.73 0.69 1.31 1.66 3/8″ 9-10 48 0.44 1.5 0.75 1.00 0.91 0.75 1.63 1.94 7/16″ 11 78 0.50 1.88 1.00 1.19 1.13 0.88 1.91 2.28 1/2″ 12-13 8 0.50 1.88 1.00 1.19 1.13 0.88 1.91 2.28 9/16″ 14-15 109 0.56 2.25 1.25 1.31 1.34 0.94 2.06 2.50 5/8″ 16 110 0.56 2.25 1.25 1.31 1.34 0.94 2.06 2.50 3/4″ 18-20 142 0.62 2.75 1.44 1.50 1.39 1.06 2.25 2.84 7/8″ 22 212 0.75 3.12 1.62 1.75 1.58 1.25 2.44 3.16 1″ 24-26 252 0.75 3.50 1.81 1.88 1.77 1.25 2.63 3.47 1-1/8″ 28-30 283 0.75 3.88 2.00 2 1.91 1.25 2.81 3.59 1-1/4″ 32-34 438 0.88 4.44 2.22 2.31 2.17 1.44 3.13 4.13 1-3/8″ 36 442 0.88 4.44 2.22 2.38 2.31 1.44 3.13 4.19 1-1/2″ 38 544 0.88 4.94 2.38 2.59 2.44 1.44 3.41 4.44 1-5/8 41-42 704 1.00 5.31 2.62 2.75 2.66 1.63 3.63 4.75 1-3/4″ 44-46 934 1.13 5.75 2.75 3.06 2.92 1.81 3.81 5.24 2″ 48-52 1300 1.25 6.44 3.00 3.38 3.28 2.00 4.44 5.88 2-1/4″ 56-58 1600 1.25 7.13 3.19 3.88 3.19 2.00 4.56 6.38 2-1/2″ 62-65 1900 1.25 7.69 3.44 4.13 3.69 2.00 4.05 6.63 2-3/4″ 68-72 2300 1.25 8.31 3.56 4.38 4.88 2.00 5.00 6.88 3″ 75-78 3100 1.50 9.19 3.88 4.75 4.44 2.38 5.31 7.61 3-1/2″ 85-90 4000 1.50 10.75 4.50 5.50 6.00 2.38 6.19 8.38 DESCRIPTION US Forged Wire Rope Clip A Crosby US forged Wire Rope Clip consists of a U-shaped bolt which fixes the wire rope cable against the saddle when the two nuts are tightened. The saddle should always be against the live portion of the wire rope and not the dead or termination end of the wire rope – this leads to the expression “Never Saddle a Dead Horse”. Two or more Wire Rope Clips are required for each eye or loop. often Product Features Of US Forged Wire Rope Clip: Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8” – 7/8” sizes, and 90% for sizes 1” through 3-1/2”. Entire Wire Rope Clip is Galvanized to resist corrosive and rusting action. Professional Wire Rope Clips Manufacturer in China Kailipu is one of the most professional wire rope clips/clamps supplier and manufacturer in China. We manufacture and export wire rope clips of various type and materials. Such as DIN 741, DIN 1142, US malleable, drop forged galvanized and stainless steel,etc. For any more help, e-mail our specialists at [email protected] for assistance.
