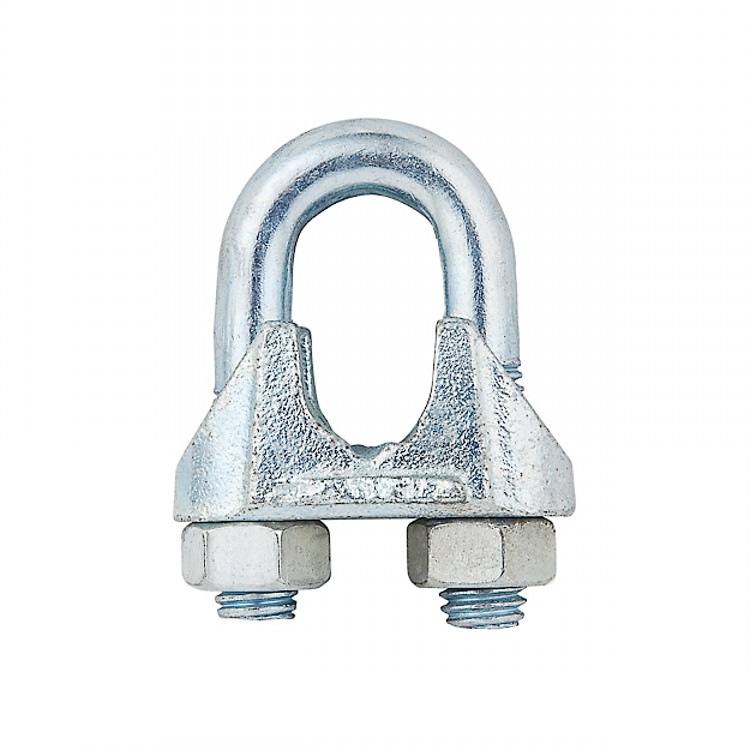

3 8 CABLE CLAMP A 3 8 cable clamp refers to the diameter capacity of the cable clamp, indicating that it can effectively secure cables or wires with a diameter of up to 3/8 of an inch. Cable clamps are used to organize and secure cables or wires in various applications to prevent tangling, damage, or interference. malleable cable clamp china supplier DIMENSIONS SIZE MM A MM B MM C MM D IN E MM F MM G MM W/100PCS KGS 1/8 11 14 14 1/4 10.8 22 20 1.54 3/16 14.5 15 16 1/4 13 26 24 2.5 1/4 17 18.5 20 5/16 15 32 31 5.3 5/16 18.3 20 22 5/16 16 35 34 5.9 3/8 22.5 22 27 3/8 22 40.5 41 11 7/16 24 23 30 3/8 22 43 42 11 1/2 27 26 35 7/16 23.3 49 53 18.5 9/16 30 26.5 40 1/2 27 52.5 54 25 5/8 33 28 40 1/2 28 57.5 59 28 3/4 34.5 32 42 9/16 34 61 68 35 7/8 41 37 46 5/8 38 71 78 53 1 45.5 42 55 5/8 43 77.5 87 66.6 3 8 CABLE CLAMP DESCRIPTION: Light-duty clip, not for use in heavy-duty applications Galvanized finish for corrosion protection Meets Federal Specification FF-C-450, Type 1, Class 2 US Type Malleable cable clamp is produced according to Federal Specification FF-C-450 Type 1 Class 2. The clips can be zinc plated, hot-dip galvanized upon request. It’s also called wire rope clip, U Clip, U Clamp, U Bolt, which is used to form the wire rope loop or eye. Key Features Of 3 8 Cable Clamp 1. Material: 3 8 cable clamp are typically made from malleable iron, which is a type of cast iron that has been heat-treated to increase its ductility and malleability. This material provides good strength and durability while maintaining some degree of flexibility. 2. U-Bolt Design: Like other wire rope clips, malleable wire rope clips have a U-bolt shape that allows the wire rope to pass through it. 3. Saddle Plate: The clips have a saddle plate that fits around the base of the U-bolt and sits on top of the wire rope. 4. Nuts: Two nuts are used to secure the U-bolt and saddle plate together, creating a tight grip on the wire rope. The Installation The installation of a 3 8 cable clamp follows a specific process to ensure proper performance and safety. Here are the general steps: 1. Positioning: Position the U-clamp around the wire rope where the loop or connection is desired. 2. Saddle Placement: Place the saddle plate on top of the wire rope, centered over the U-bolt. 3. Nuts Installation: Screw the two nuts onto the threaded ends of the U-bolt and tighten them alternately. Ensure they are tightened to the specified torque, following the manufacturer’s guidelines. 4. Check Tightness: After installation, check the tightness of the nuts regularly, especially during the initial period of use and periodically thereafter, to ensure they remain secure. It’s important to follow the manufacturer’s instructions and guidelines when installing cable clamp to ensure a proper and secure connection. Incorrect installation or the use of the wrong number of clips for a given wire rope diameter can compromise the strength and safety of the connection. 3 8 cable clamp china manufacturer-Qingdao kailipu Professional Cable Clamp Manufacturer in China Kailipu is one of the most professional wire rope clips supplier and manufacturer in China. We manufacture and export wire rope clips of various type and materials. Such as DIN 741, DIN 1142, US malleable, drop forged galvanized and stainless steel,etc. For any more help, e-mail our specialists at [email protected] for assistance.
