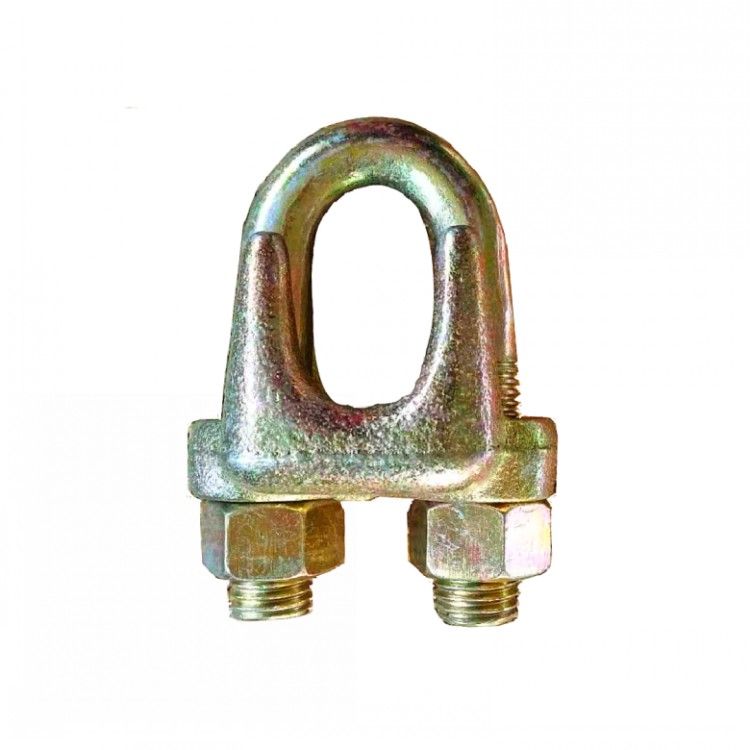

ROPE WIRE CLIPS TYPE A Rope wire clips, also known as cable clamps or wire rope clamps, are devices used to secure the ends of wire ropes or cables together. “Type A” typically refers to a specific style of wire rope clip in China standard. Wire rope clips are commonly used in various applications, such as in construction, rigging, marine, and industrial settings, to create loops, terminate wire ropes, or form connections. DIMENSIONS SIZE MM A MM B MM C MM D MM E MM F MM G MM 6 12 17 14 5 14 23 24.8 8 15 21 16 6 17 28 30.66 10 19 28 20 8 21 38 37.95 12 24 34 25 10 27 45 47.15 15 29 40 30 12 32 52 57.73 20 36 47 36 14 38 62 71.73 22 40 52 39 16 43 69 78.23 25 43 56 44 18 50 76 90.4 28 48 62 48 20 57 85 96.9 32 55 67 51 22 61 93 110.4 40 64 81 62 24 73 111 122.5 45 72 88 70 27 86 123 139.5 50 80 95 80 30 95 135 156 DESCRIPTION Wire Rope Clips Type A-a very cost-effective type, widely used. They are a simple fitting that can be installed in the shop or in the field. The intended application for the wire rope or cable should determine which type to use. THE COMPONENTS OF WIRE ROPE CLIPS TYPE A A typical wire rope clip (Type A) consists of three main components: 1. U-Bolt: This is a U-shaped bolt that goes around the wire rope and provides the clamping force. 2. Saddle: The saddle is a curved piece that sits on top of the wire rope and holds it in place against the U-bolt. 3. Nuts: Two nuts are threaded onto the ends of the U-bolt to secure the saddle and create the clamping force on the wire rope. The Installation Of Wire Rope Clips Type A Wire rope clips are commonly used in various applications, including rigging, construction, marine, and industrial settings. They provide a reliable and straightforward way to terminate or create a loop in a wire rope. The installation of a wire rope clip follows a specific process to ensure proper performance and safety. Here are the general steps: 1. Positioning: Position the U-clamp around the wire rope where the loop or connection is desired. 2. Saddle Placement: Place the saddle plate on top of the wire rope, centered over the U-bolt. 3. Nuts Installation: Screw the two nuts onto the threaded ends of the U-bolt and tighten them alternately. Ensure they are tightened to the specified torque, following the manufacturer’s guidelines. 4. Check Tightness: After installation, check the tightness of the nuts regularly, especially during the initial period of use and periodically thereafter, to ensure they remain secure. Remember that improper installation of wire rope clip can lead to unsafe conditions, so it’s essential to follow proper procedures and guidelines. If you’re working with critical applications or loads, it’s advisable to consult with professionals who have experience in rigging and cable connections to ensure everything is done correctly and safely. Professional Rope Wire Clips Manufacturer in China Kailipu is one of the most professional rope wire clips supplier and manufacturer in China. We manufacture and export cable clamps of various type and materials. Such as DIN 741, DIN 1142, US malleable, drop forged galvanized and stainless steel,etc. For any more help, e-mail our specialists at [email protected] for assistance.
