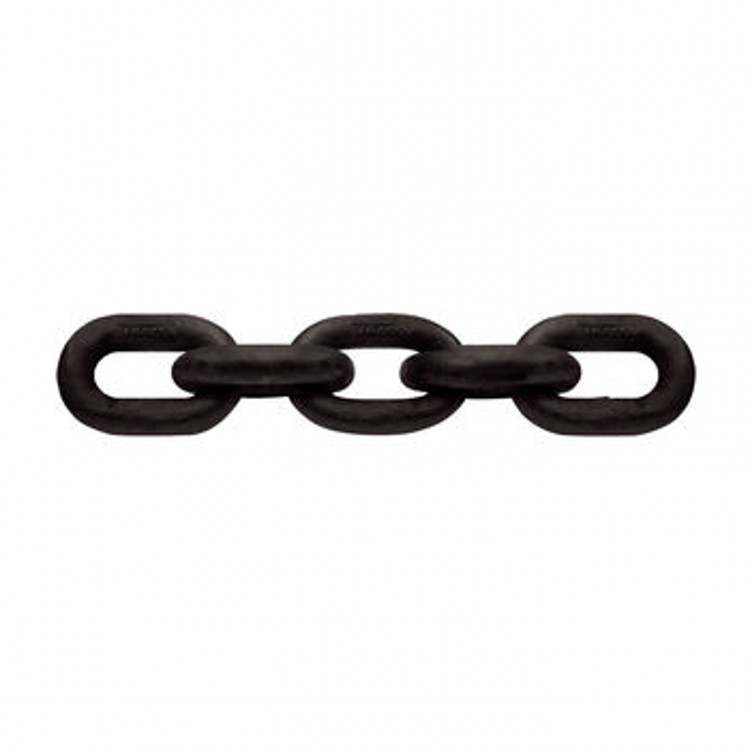

EN818-2 LIFTING CHAIN, GRADE 80 SHORT LINK CHAIN

EN818-2 LIFTING CHAIN GRADE 80 SHORT LINK CHAIN Nominal Size Pitch External Width Internal Width Working Load Limit Manufacturing Proof Force Min. Breaking Force Min. Bend Deflection Weight D mm L mm B mm b mm           t kN kN mm kg/m 4 12 13.2 5.2 0.5 12.6 20.1 3.2 0.349 5 15 16.5 6.5 0.8 19.6 31.4 4 0.545 6 18 21 9 1.1 28.3 45.2 4.8 0.802 7 21 24 10 1.5 38.5 61.6 5.6 1.083 8 24 27.5 11.5 2 50.3 80.4 6.4 1.416 10 30 34.5 14.5 3.2 78.5 126 8 2.216 13 39 45 19 5.3 133 212 10 3.749 16 48 55.5 23.5 8 201 322 13 5.571 18 54 61 25 10 254 407 14 7.154 19 57 64 26 11.2 284 454 15 7.773 20 60 68 28 12.5 314 503 16 8.641 22 66 73.5 29.5 15 380 608 18 10.391 26 78 89 37 21.2 531 849 21 14.64 32 96 112 48 31.5 804 1290 26 22.358 GRADE 80 SHORT LINK EN818-2 LIFTING CHAIN. For lifting purposes Conforms to the mechanical properties of European Standard EN818-2 Produced from the highest quality alloy steel Quenched and tempered, proof tested In accordance with 4-to-1 design factor required by EN818-2 standard. Black electrophoresis finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! Kailipu Professional for en818-2 lifting chain & accessories.For any more help, e-mail our specialists at [email protected] for assistance. Similar items:GRADE 80 ALLOY CHAIN NACM2010
