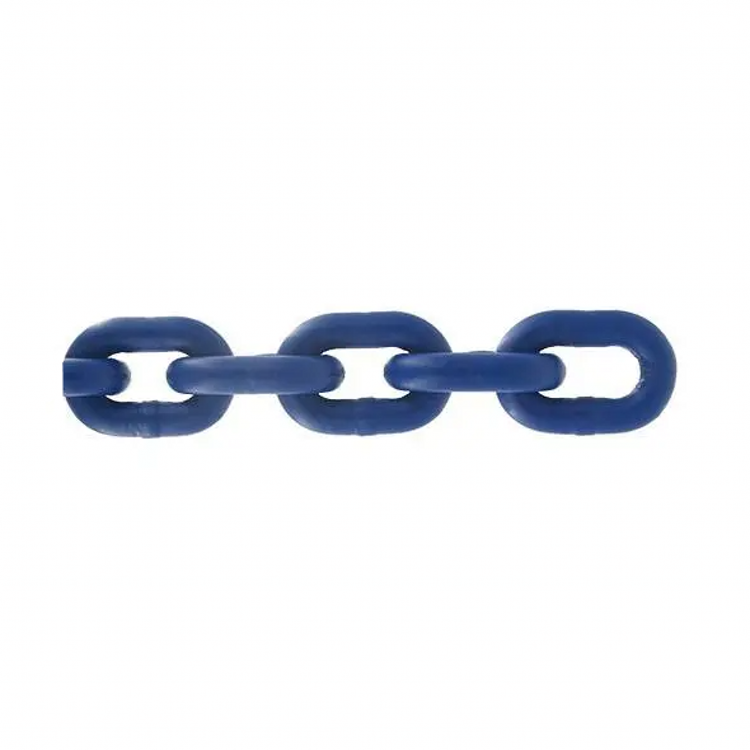

GRADE 100 ALLOY CHAIN ASTM973

ASTM973 GRADE 100 ALLOY CHAIN Nominal Chain Size Material Diameter Working Load Limit(Max.) Proof Test (Min.) Min. Breaking Force Inside Length (Max.) Inside Width Range in mm in mm lbs kg lbs kN lbs kN in mm in mm 7/32 5.5 0.217 5.5 2,700 1,220 5,400 23.8 10,800 47.6 0.7 17.6 0.281-0.325 7.14-8.25 9/32 7 0.276 7 4,300 1,950 8,600 38.5 17,200 77 0.9 22.9 0.281-0.430 9.53-10.92 5/16 8 0.315 8 5,700 2,600 11,400 51 22,800 102 1 26.4 0.430-0.500 10.92-12.70 3/8 10 0.394 10 8,800 4,000 17,600 79 35,200 158 1.3 32 0.512-0.600 13.00-15.20 1/2 13 0.512 13 15,000 6,800 30,000 134 60,000 268 1.6 41.6 0.688-0.768 17.48-19.50 5/8 16 0.63 16 22,600 10,300 45,200 201 90,400 402 2 51.2 0.812-0.945 20.63-24.00 3/4 20 0.787 20 35,300 16,000 70,600 315 141,200 630 2.5 64 0.964-1.180 25.00-30.00 7/8 22 0.866 22 42,700 19,400 85,400 381 170,800 762 2.8 70.4 1.080-1.300 27.50-33.00 ASTM973 GRADE 100 ALLOY CHAIN Specifically recommended for overhead lifting Grade 100 chain is 25% stronger than Grade 80 chain. Enables you to perform some lifts with lighter weight chain. Meet the latest guidelines of ASTM A973 specifications Produced from the highest quality alloy steel Quenched and tempered, proof tested In accordance with 4-to-1 design factor required by the ASTM A973 specifications Blue electrophoresis finish or black electrophoresis finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:GRADE 100 ALLOY CHAIN NACM2010
