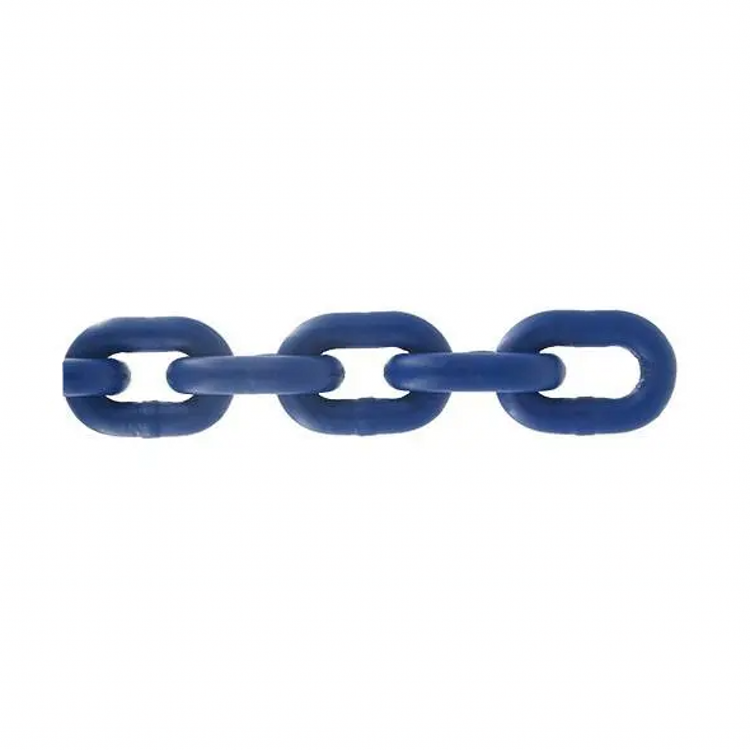

AS2321 SHORT LINK CHAIN GRADE V 10, 100 Nominal Size Pitch External Width Internal Width Working Load Limit Manufacturing Proof Force Min. Breaking Force Min. Bend Deflection Weight D L B b mm mm mm mm t kN kN mm kg/m 5 15 16.5 6.5 1 24.5 39.3 4 0.545 6 18 21 9 1.4 35.3 56.5 4.8 0.859 7 21 24 10 1.9 48.1 77 5.6 1.163 8 24 27.5 11.5 2.5 62.8 101 6.4 1.491 10 30 34.5 14.5 4 98.1 157 8 2.309 13 39 45 19 6.7 166 265 10 3.871 16 48 55.5 23.5 10 251 402 13 5.717 18 54 61 25 12.5 318 509 14 7.154 19 57 64 26 14 354 567 15 7.944 20 60 68 28 16 393 628 16 8.822 22 66 73.5 29.5 19 475 760 18 10.391 AS2321 SHORT LINK CHAIN GRADE V Short link chain for lifting purposes Conforms to the latest revision of Australian Standard 2321 Grade 100 chain is 25% stronger than Grade 80 chain. Enables you to perform some lifts with lighter weight chain. Produced from the highest quality alloy steel Quenched and tempered, proof tested In accordance with 4-to-1 design factor required by AS 2321 standard. Blue electrophoresis finish or black electrophoresis finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! Kailipu Professional for Rigging and Lifting Accessories For any more help, e-mail our specialists at [email protected] for assistance. Similar items:GRADE 100 ALLOY CHAIN NACM2010
