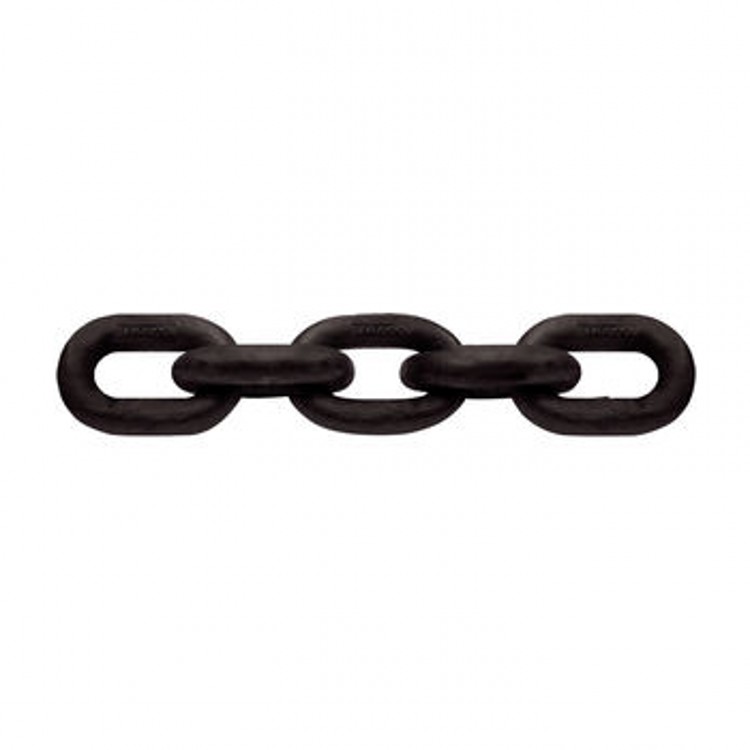

EN818-7 GRADE T ( 80 ) HOIST CHAIN TYPE T Nominal Size Pitch External Width Internal Width Working Load Limit Manufacturing Proof Force Min. Breaking Force Min. Bend Deflection Weight D L B b mm mm mm mm t kN kN mm kg/m 4 12 13.2 5.2 0.5 12.6 20.1 3.2 0.349 5 15 16.5 6.5 0.8 19.6 31.4 4 0.545 6 18 19.8 7.8 1.1 28.3 45.2 4.8 0.785 7 21 23.1 9.1 1.5 38.5 61.6 5.6 1.069 8 24 26.4 10.4 2 50.3 80.4 6.4 1.396 9 27 29.7 11.7 2.5 63.6 102 7.2 1.849 10 30 33 13 3.2 78.5 126 8 2.181 12 36 39.6 15.6 4.5 113 181 9.6 3.251 13 39 43 17 5.3 133 212 10 3.689 16 48 55.5 23.5 8 201 322 13 5.571 18 54 61 25 10 254 407 14 7.154 20 60 68 28 12.5 314 503 16 8.641 22 66 73.5 29.5 15 380 608 18 10.391 EN818-7 GRADE T ( 80 ) HOIST CHAIN TYPE T Short link chain for lifting purposes Conforms to the mechanical properties of European Standard EN818-7 Produced from the highest quality alloy steel Quenched and tempered, proof tested In accordance with 4-to-1 design factor required by EN818-7 standard. Black electrophoresis finish or zinc plated finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:GRADE 80 ALLOY CHAIN NACM2010
