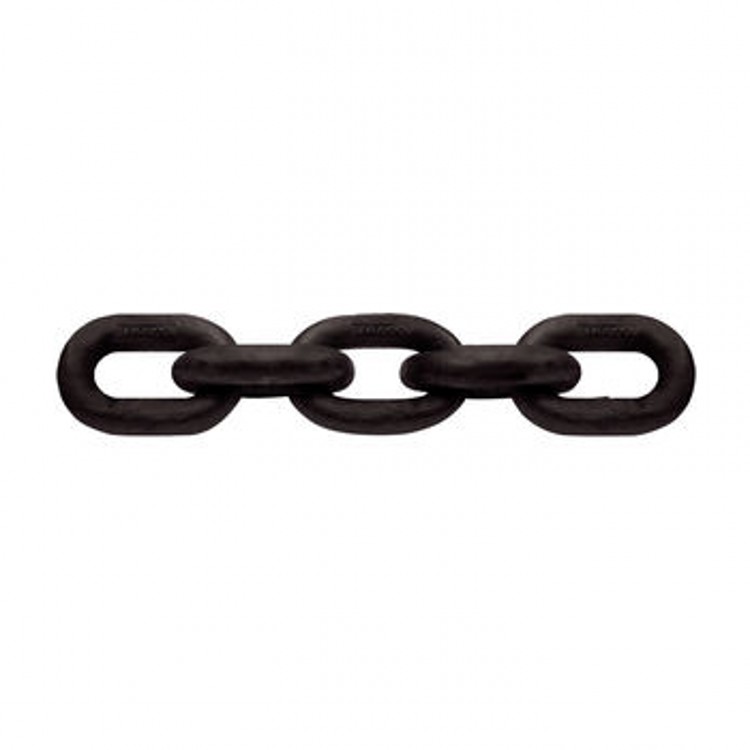

AS2321 GRADE T (80) SHORT LINK CHAIN Nominal Size Pitch External Width Internal Width Working Load Limit Manufacturing Proof Force Min. Breaking Force Min. Bend Deflection Weight D L B b mm mm mm mm t kN kN mm kg/m 4 12 13.2 5.2 0.5 12.6 20.1 3.2 0.349 5 15 16.5 6.5 1 24.5 39.3 4 0.545 6 18 21 9 1.1 28.3 45.2 4.8 0.802 7 21 24 10 1.5 38.5 61.6 5.6 1.083 8 24 27.5 11.5 2 50.3 80.4 6.4 1.416 10 30 34.5 14.5 3.2 78.5 126 8 2.216 13 39 45 19 5.3 133 212 10.4 3.528 16 48 55.5 23.5 8 201 322 12.8 5.571 18 54 61 25 10 254 407 14.4 7.154 19 57 64 26 11.5 284 454 15.2 7.773 20 60 68 28 12.5 314 503 16 8.641 22 66 73.5 29.5 15 380 608 17.6 10.391 26 78 89 37 21.2 531 849 20.8 14.64 32 96 112 48 31.5 804 1290 25.6 22.357 AS2321 GRADE T (80) SHORT LINK CHAIN Short link chain for lifting purposes Conforms to the latest revision of Australian Standard 2321 Produced from the highest quality alloy steel Quenched and tempered, proof tested In accordance with 4-to-1 design factor required by AS2321 standard. Black electrophoresis finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:GRADE V SHORT LINK CHAIN AS2321
