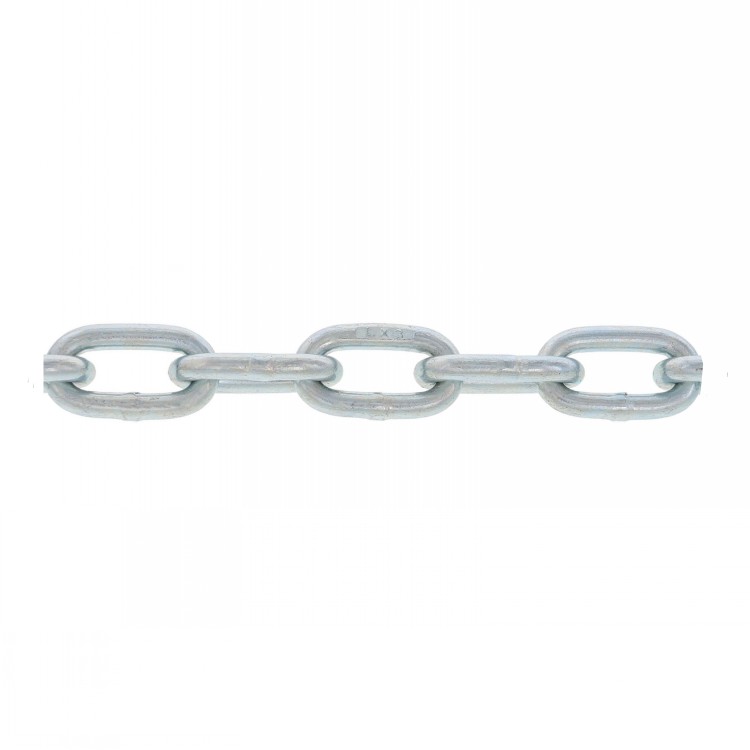

GRADE 30 PROOF COIL CHAIN ASTM80

G30 PROOF COIL CHAIN Nominal Chain Size Material Diameter Working Load Limit(Max.) Proof Test (Min.) Min. Breaking Force Max. Length Per 100 Links Max. Weight Per 100 FT in in mm lbs kg lbs kN lbs kN in m lbs kg 1/8 0.156 4 375 170 800 3.6 1,600 7.1 94 2.39 19 8.8 3/16 0.218 5.5 750 340 1,500 6.7 3,000 13.3 99 2.51 42 19 1/4 0.281 7.1 1,250 570 2,500 11.1 5,000 22.2 104 2.64 76 34 5/16 0.343 8.7 1,900 860 3,800 16.9 7,600 33.8 114 2.89 115 52 3/8 0.406 10.3 2,650 1,200 5,300 23.6 10,600 47.2 128 3.25 166 75 5/16 0.468 11.9 3,500 1,590 7,000 31.1 14,000 62.3 142 3.6 225 102 3/8 0.531 13.5 4,500 2,040 9,000 40 18,000 80.1 156 3.96 289 131 5/8 0.656 16.7 6,900 3,130 13,800 61.4 27,600 122.8 194 4.92 425 193 3/4 0.781 19.8 9,750 4,420 19,500 86.7 39,000 173.5 220 5.59 612 278 G30 Proof coil chain meets the latest revision of ASTM A413 specifications A general utility chain for farm, industrial and home applications. Material: low carbon steel Embossed with “RG30” Proof tested Design factor 4 : 1 Self-color finish, zinc plated finish, hot dip galvanized finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING. Kailipu Professional for Rope and Chain Hardware For any more help, e-mail our specialists at [email protected] for assistance. Similar items:ORDINARY MILD STEEL CHAIN LONG LINK,ORDINARY MILD STEEL CHAIN SHORT LINK
