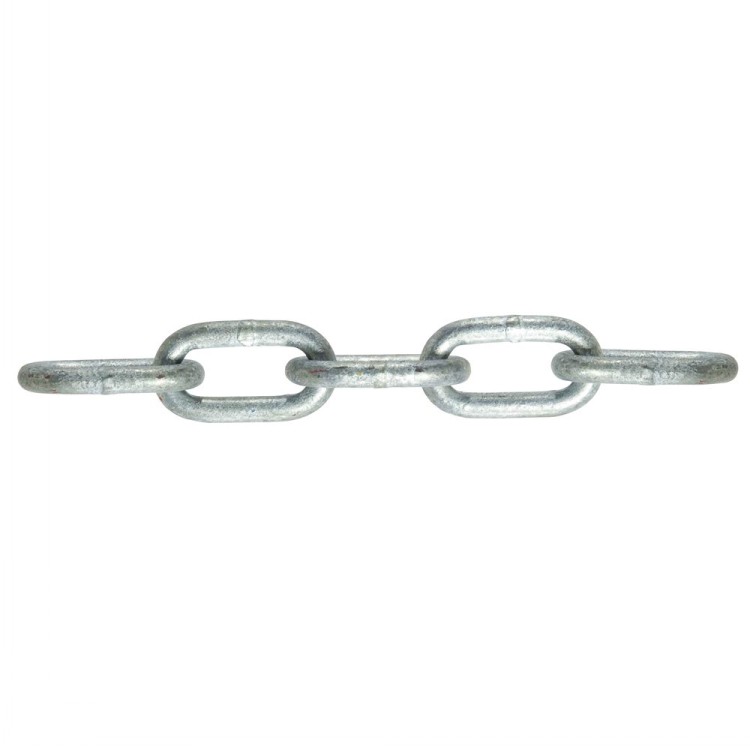

ORDINARY MILD STEEL CHAIN LONG LINK Link Specification Proof Test Load Breaking Load Net Weight Per 200FT D L B SC & EG HDG in mm mm mm kg kg kg kg 1/8 3.2 23 12 200 400 10.4 10.7 5/32 4 27 15 300 600 16.6 17.5 3/16 4.7 31 17 400 800 22.4 23.3 7/32 5.5 32 19 550 1,100 32 33 1/4 6.35 33 21 750 1,500 43.5 44.8 5/16 7.94 48 31 1,200 2,400 68 70 3/8 9.5 60 37 1,700 3,400 96 99 7/16 11.11 71 41 2,300 4,600 126 129 1/2 12.7 85 48.5 3,000 6,000 167 172 5/8 15.8 114 61.5 4,700 9,400 256 264 3/4 19 125 75 6,800 13,600 381 392 7/8 22.2 140 88 9,250 18,500 527 543 1 25.4 155 100 12,150 24,300 696 716 The ordinary mild steel chain is manufactured from low grade carbon steel and available in a variety of link dimensions. Suitable for a wide range of applications across the manufacturing, marine and agricultural industries. Ordinary chain is supplied untested and unstamped for the most economical solution to a variety of general purpose uses. Material: low carbon steel Self-color finish, zinc plated finish, hot dip galvanized finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING. Kailipu Professional for Rope and Chain Hardware For any more help, e-mail our specialists at [email protected] for assistance. Similar items:AUSTRALIAN STANDARD SHORT LINK CHAIN,AUSTRALIAN STANDARD REGULAR LINK CHAIN
