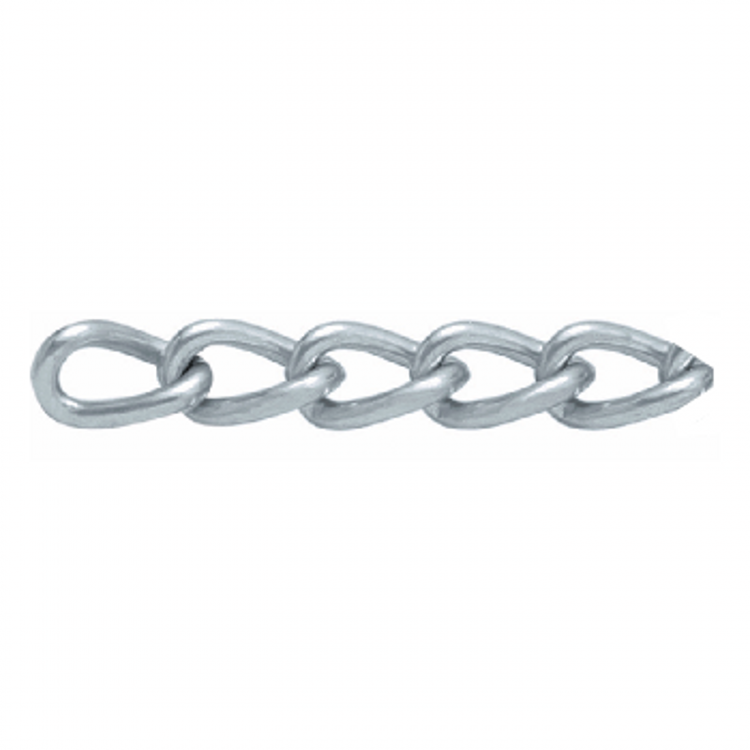

TWIST LINK CHAIN-NACM2010 MACHINE CHAIN

TWIST LINK CHAIN-NACM2010 MACHINE CHAIN Size Material Diameter Working Load Limit(Max.) Min. Breaking Force Nominal Inside Length Nominal Inside Width mm in mm lbs kg lbs kN in mm in mm 4 3 0.12 3 205 93 820 3.64 0.52 13.1 0.17 4.3 3 3.4 0.135 3.4 255 116 1,020 4.53 0.56 14.2 0.2 5.1 2 3.8 0.148 3.8 310 141 1,240 5.51 0.58 14.7 0.21 5.3 1 4.1 0.162 4.1 370 168 1,480 6.58 0.59 15 0.24 6.1 1/0 4.5 0.177 4.5 440 200 1,760 7.82 0.68 17.2 0.26 6.6 2/0 4.9 0.192 4.9 520 236 2,080 9.24 0.73 18.5 0.28 7.1 3/0 5.3 0.207 5.3 605 274 2,420 10.76 0.8 20.3 0.31 7.9 4/0 5.5 0.218 5.5 670 304 2,680 11.91 0.89 22.5 0.32 8.1 5/0 6.4 0.25 6.4 880 400 3,520 15.64 1 25.3 0.37 9.4 TWIST LINK NACM2010 MACHINE CHAIN Meet the latest guidelines of the National Association of Chain Manufacturers (NACM) Short link, commonly used for tail gates, agricultural implements and industrial equipment Material: low carbon steel Design factor 4 : 1 Self-color finish, zinc plated finish, hot dip galvanized finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING. Kailipu Professional for Rope and Chain Hardware For any more help, e-mail our specialists at [email protected] for assistance. Similar items:ORDINARY MILD STEEL CHAIN LONG LINK,ORDINARY MILD STEEL CHAIN SHORT LINK
