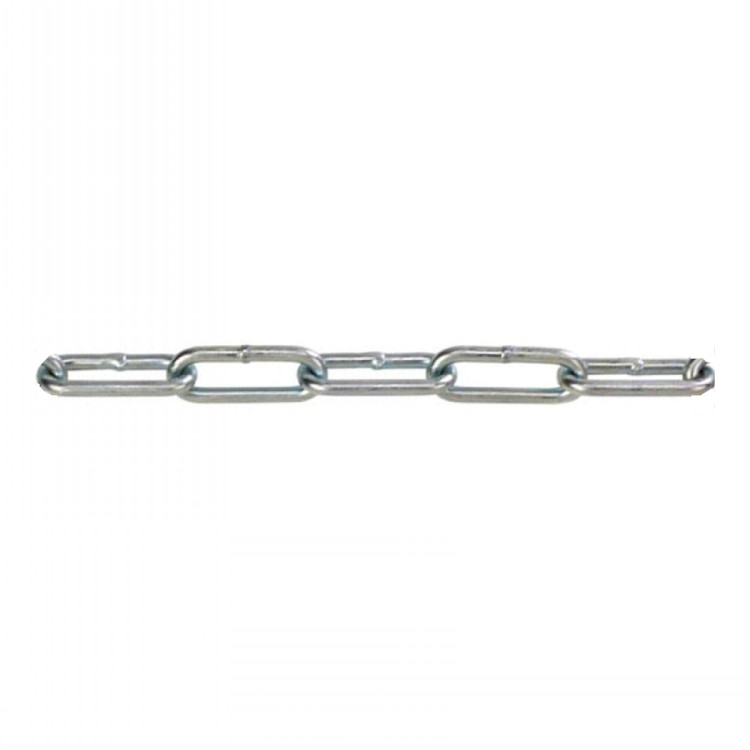

STRAIGHT LINK COIL CHAIN – NACM2010

STRAIGHT LINK COIL CHAIN – NACM2010 Size Material Diameter Working Load Limit(Max.) Proof Test (Min.) Min. Breaking Force Nominal Inside Length Nominal Inside Width mm in mm lbs kg lbs kN lbs kN in mm in mm 4 3 0.12 3 205 93 410 1.82 820 3.64 1.11 28.1 0.21 5.32 3 3.4 0.135 3.4 255 116 510 2.27 1,020 4.53 1.17 29.6 0.24 6.09 2 3.8 0.148 3.8 310 141 620 2.76 1,240 5.51 1.18 29.9 0.26 6.59 1 4.1 0.162 4.1 370 168 740 3.29 1,480 6.58 1.25 31.7 0.28 7.1 1/0 4.5 0.177 4.5 440 200 880 3.91 1,760 7.82 1.25 31.7 0.31 7.86 2/0 4.9 0.192 4.9 520 236 1,040 4.63 2,080 9.24 1.26 31.9 0.34 8.62 3/0 5.3 0.207 5.3 605 274 1,210 5.38 2,420 10.76 1.3 32.9 0.36 9.13 4/0 5.5 0.218 5.5 670 304 1,340 5.96 2,680 11.91 1.39 35.2 0.38 9.64 5/0 6.4 0.25 6.4 880 399 1,760 7.83 3,520 15.64 1.52 38.5 0.44 11.2 STRAIGHT LINK COIL CHAIN Meet the latest guidelines of the National Association of Chain Manufacturers (NACM) Long link, commonly used for tail gates, safety chains, barriers and animal ties. Material: low carbon steel Design factor 4 : 1 Self-color finish, zinc plated finish, hot dip galvanized finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING. Kailipu Professional for Rope and Chain Hardware For any more help, e-mail our specialists at [email protected] for assistance. Similar items:ORDINARY MILD STEEL CHAIN LONG LINK,ORDINARY MILD STEEL CHAIN SHORT LINK
