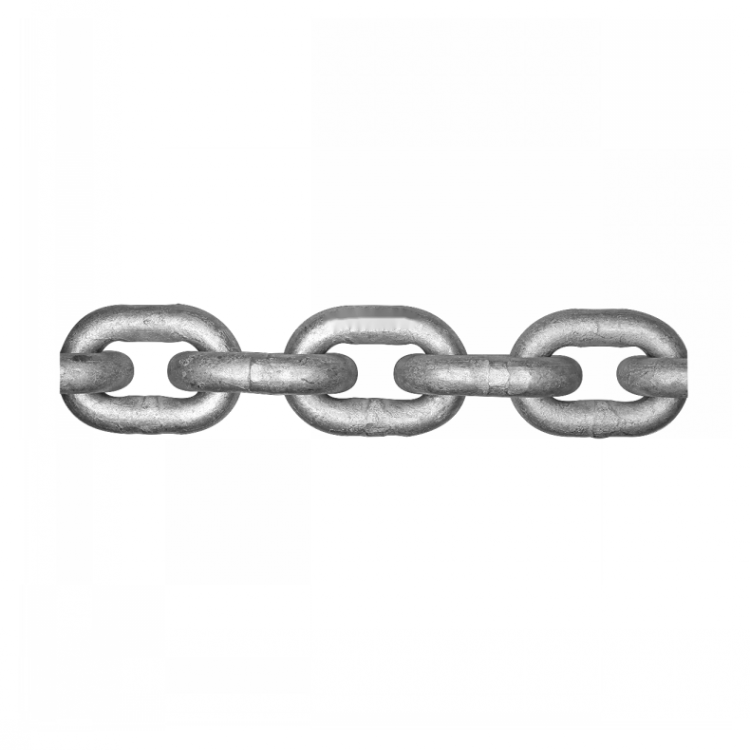

AUSTRALIAN STANDARD SHORT LINK CHAIN Chain Size Working Load Link Dimension Length per 100kg D L B SC & EG HDG mm tonnes mm mm mm meters meters 3 0.05 3.15 22.1 15.7 555 526 4 0.09 4 25.4 18.6 345 323 5 0.19 5 29.3 21.8 217 206 6 0.32 6.3 34.5 26.1 135 128 8 0.53 8 41.2 31.9 82.2 78.1 10 0.83 10 49 38.7 52.9 50.2 The Australian Standard short link chain is manufactured from low grade carbon steel and available in a variety of link dimensions. Suitable for a wide range of applications across the manufacturing, marine and agricultural industries, this versatile range of chain is proof tested to at least twice the maximum load recommended for normal use. Material: low carbon steel Self-color finish, zinc plated finish, hot dip galvanized finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING. Kailipu Professional for Rope and Chain Hardware For any more help, e-mail our specialists at [email protected] for assistance. Similar items:EN818-2 GRADE 80 SHORT LINK CHAIN,GRADE 80 ALLOY CHAIN NACM2010
