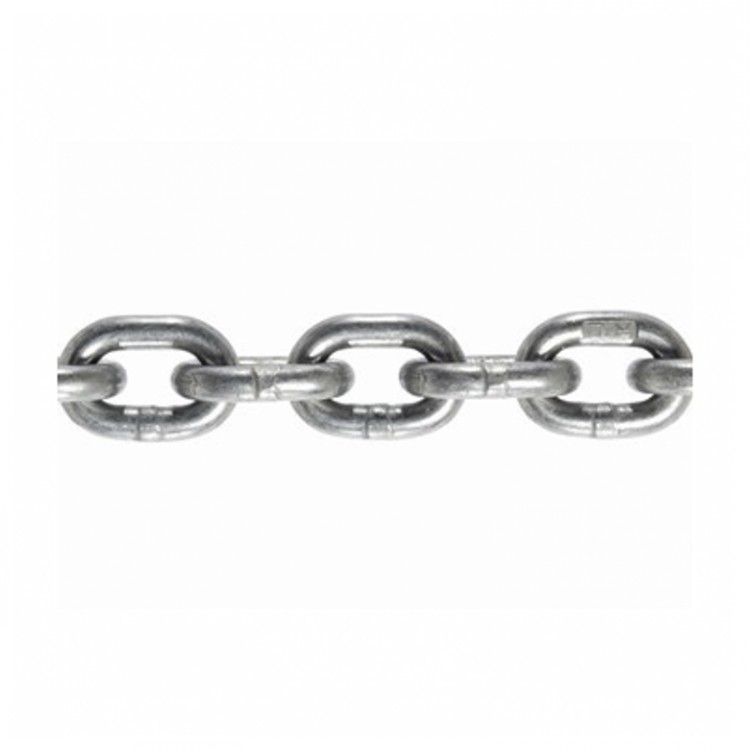

MEDIUM LINK CHAIN ORDINARY MILD STEEL Link Specification Proof Test Load Breaking Load Net Weight Per 200FT D L B SC & EG HDG in mm mm mm kg kg kg kg 1/8 3.2 20 12 200 400 10.8 11 5/32 4 23 15 300 600 17.4 18 3/16 4.7 25 18 400 800 24.4 25 7/32 5.5 26 19 550 1,100 34 35 1/4 6.35 26 23 750 1,500 48.8 50 5/16 7.94 32 29 1,200 2,400 76 78 3/8 9.5 35 35 1,700 3,400 111 114 7/16 11.11 38 38 2,300 4,600 154 158 1/2 12.7 50 45.5 3,000 6,000 194 200 5/8 15.8 60 56.7 4,700 9,400 303 312 3/4 19 76 69 6,800 13,600 432 445 7/8 22.2 90 80 9,250 18,500 586 603 1 25.4 105 95 12,150 24,300 770 792 The ordinary mild steel chain medium link is manufactured from low grade carbon steel and available in a variety of link dimensions. Suitable for a wide range of applications across the manufacturing, marine and agricultural industries. Ordinary chain is supplied untested and unstamped for the most economical solution to a variety of general purpose uses. Material: low carbon steel Self-color finish, zinc plated finish, hot dip galvanized finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING. Kailipu Professional for Rope and Chain Hardware For any more help, e-mail our specialists at [email protected] for assistance. Similar items:AUSTRALIAN STANDARD SHORT LINK CHAIN,ORDINARY MILD STEEL CHAIN LONG LINK
